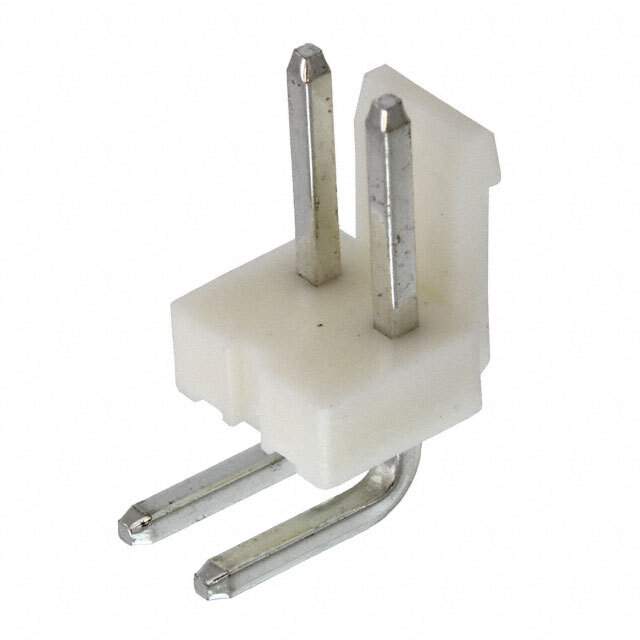

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.156" (3.96mm)
Number of Positions 2
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 1 Wall
Mounting Through Hole, Right Angle
Termination Solder
Fastening Type Friction Lock
Contact Length - Mating 0.338" (8.59mm)
Contact Length - Post 0.142" (3.60mm)
Insulation Height 0.339" (8.61mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 80.0µin (2.03µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6
Temperature Range - Operating -25°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color White
Current Rating (Amps) 7.5A
Voltage Rating 250VAC
Contact Finish Thickness - Post 80.0µin (2.03µm)
Applications General Purpose, Industrial, Lighting
Base Product Number 647676
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number -647676-2-SI,A114288,2266-647676-2,-647676-2-CSI,647676-2-ND
Standard Package 1,000
Win Source Part Number 1334229-647676-2
Ultra Librarian 3D Model Ultra Librarian 647676-2 CAD Model

Description

TE Connectivity AMP Connectors presents a bulk packaged Header Connector that is ideal for use in General Purpose, Industrial, and Lighting applications.

  • Application: General Purpose, Industrial, and Lighting
  • Position Number: 2
  • Row Number: 1
  • Contact Type: male pin
  • Loaded: All positions
  • Voltage Rating: 250VAC
  • Contact Material: brass
  • Contact Finish: tin
  • Contact Finish Thickness: 80.0μin (2.03μm) for mating and post
  • Contact Length (Mating): 0.338" (8.59mm)
  • Contact Length (Post): 0.142" (3.60mm)
  • Contact Shape: square
  • Pitch Mating: 0.156" (3.96mm)
  • Insulation Material: Polyamide (PA66), Nylon 6/6
  • Insulation Color: white
  • Shrouded: 1 wall
  • Fastening Type: friction lock
  • Temperature Range: -25°C ~ 105°C
  • ROHS3: compliant
