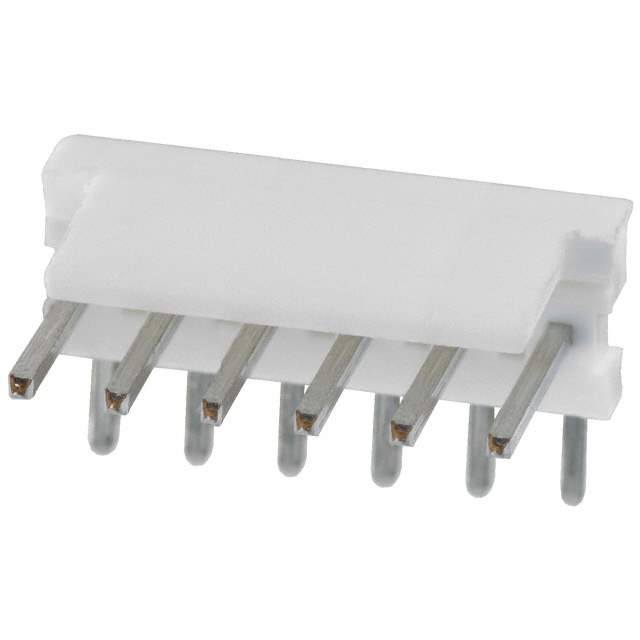

640457-6 Real Image

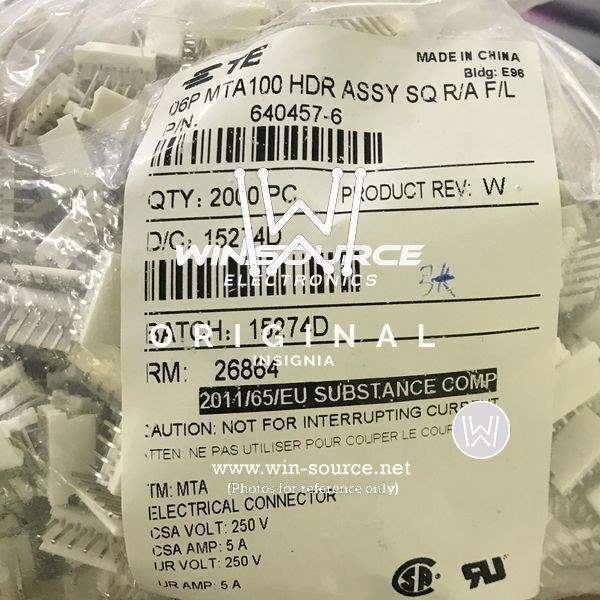

Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 2.54mm
Style Board to Cable/Wire
Shrouding Shrouded - 1 Wall
Number of Positions 6
Number of Positions Loaded All
Number of Rows 1
Mounting Through Hole, Right Angle
Termination Solder
Fastening Type Friction Lock
Contact Length - Mating 0.295" (7.49mm)
Contact Length - Post 0.140" (3.56mm)
Insulation Height 0.225" (5.72mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Insulation Material Thermoplastic
Temperature Range - Operating -55°C to 105°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating Varies by Wire Gauge
Voltage Rating 250VAC
Applications General Purpose
Win Source Part Number 1006662-640457-6
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 640457-6 CAD Model

Description

The 1006662-640457-6 from TE Connectivity AMP Connectors is a header connector with a friction lock fastening type.

  • Fastening Type: friction lock
  • Positions: 6
  • Contact Type: male pin
  • Positions Loaded: all
  • Shrouding: 1 wall
  • Pitch-Mating: 2.54mm
  • Contact Finish for Mating and Post: tin-plated
  • Insulation Material: thermoplastic
  • Insulation Color: natural
  • Flammability Rating: UL94 V-0
  • Application: general-purpose
  • Voltage Rating: 250VAC
  • Operating Temperature: -55°C to 105°C
  • Application: board-to-cable/wire
