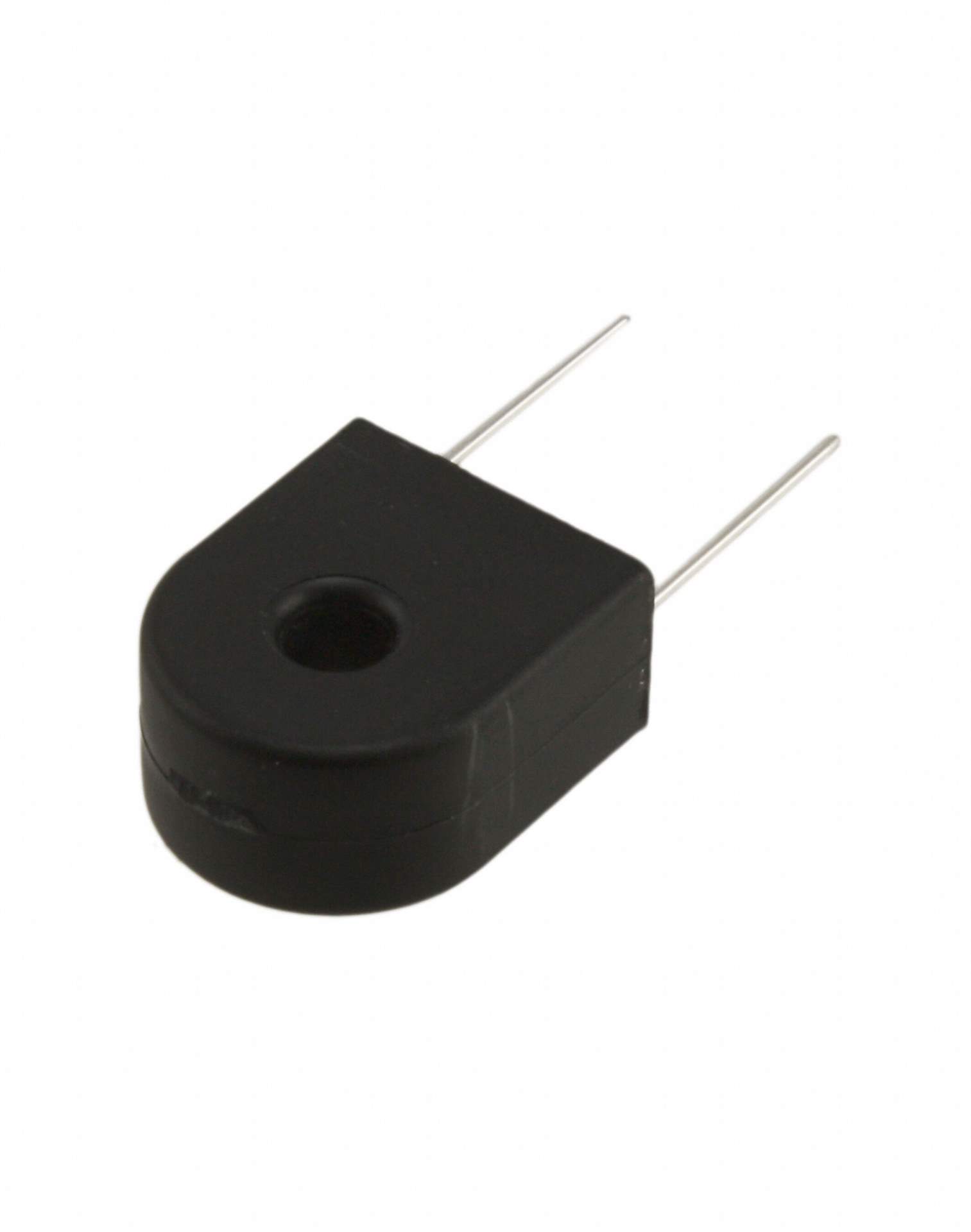

PE-51687NL Real Image
Same model may have multiple batches, images only for reference.

PE-51687NL

Part No PE-51687NL
Manufacturer Pulse
Catalog Current Sense Transformers
Description INDUCTOR CURR SENSE 20.0 MH T/H
Datasheet
PE-51687NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Transformers
Manufacturer Pulse Electronics Corporation
Packaging Tray
Status Active
Frequency Range 20kHz to 200kHz
Type Invasive
Current Rating 20A
Inductance 20mH
DC Resistance (DCR) 100 Ohm Primary, 1.4 Ohm Secondary
Mounting Through Hole
Height - Seated (Max) 0.800" (20.32mm)
Termination Style PC Pin
Win Source Part Number 141351-PE-51687NL
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PE-51687NL CAD Model

Description

The Pulse Electronics Corporation PE-51687NL is a through-hole invasive transformer that is suitable for a wide range of applications.

  • Current Rating: 20A
  • Inductance: 20mH
  • DC Resistance: 100 Ohm primary and 1.4 Ohm secondary
  • Packaging: Tray
  • Height: 0.800" (20.32mm) when seated
  • Frequency Range: 20kHz to 200kHz
  • Popularity: Medium
  • Category: Transformers
