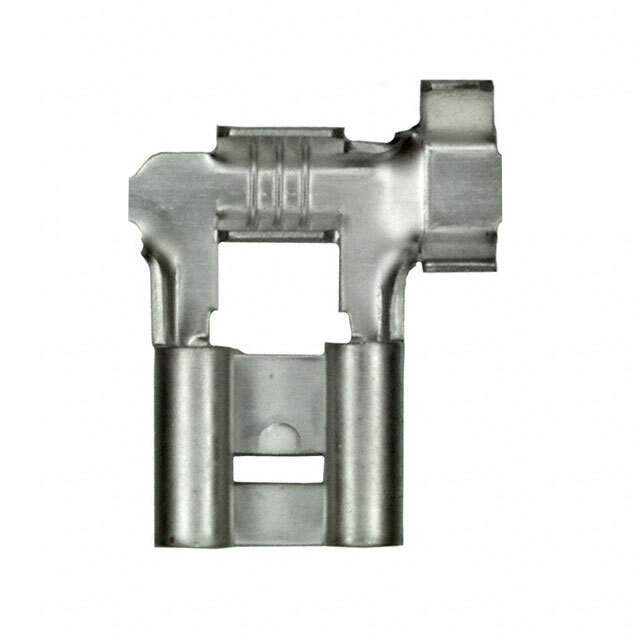

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects > Terminals > Quick Connects, Quick Disconnect Connectors
Part Status Active
Terminal Type Angled - 90°, Flag
Gender Female
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Tab Length 0.240" (6.10mm)
Termination Crimp
Insulation Non-Insulated
Ultra Librarian 3D Model Ultra Librarian 63009-2 CAD Model

Description

Quick Disconnect Receptacle, 18 – 14 AWG, .82 – 2.08 mm² Wire, 6.35 mm [.25 in] Tab Width, Flag, Brass, Tin Plating, Strip/Reel, FCrimp, FASTON 250
