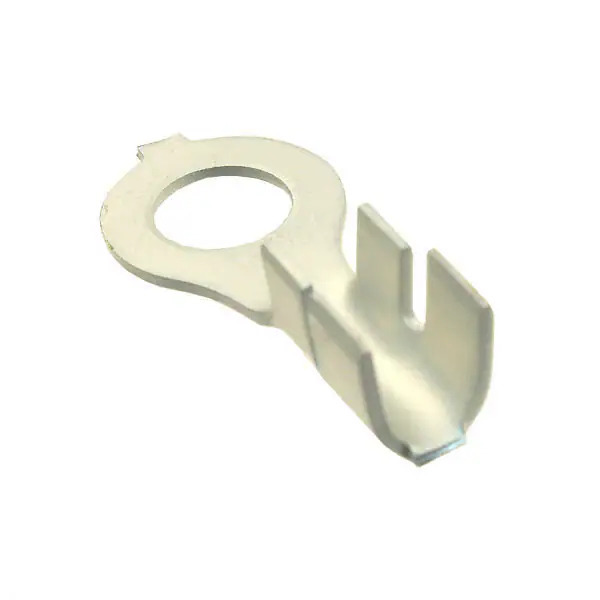

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Ring Connectors
Mfr TE Connectivity AMP Connectors
Series -
Package Tape & Reel (TR)
Product Status Active
Terminal Type Circular
Stud/Tab Size -
Thickness 0.030" (0.76mm)
Width - Outer Edges 0.470" (11.94mm)
Length - Overall 1.050" (26.67mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Wire Gauge 10-12 AWG
Insulation Non-Insulated
Features -
Color -
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.150" ~ 0.210" (3.81mm ~ 5.33mm)
Material - Insulation -
Base Product Number 62691
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1364857-62691-2
Ultra Librarian 3D Model Ultra Librarian 62691-2 CAD Model

Description

The TE Connectivity AMP Connectors offers a wide range of terminals for various applications.

  • Type: Circular Ring Connector
  • Wire Gauge: 10-12 AWG
  • Contact Material: Brass
  • Insulation: Non-Insulated
  • Termination: Crimp
  • Overall Length: 1.050" (26.67mm)
  • Width: 0.470" (11.94mm)
  • Mounting: Free hanging (in-line)
  • Insulation Diameter: 0.150" to 0.210" (3.81mm to 5.33mm)
  • Product Status: Active
  • Manufacturer: TE Connectivity AMP Connectors
