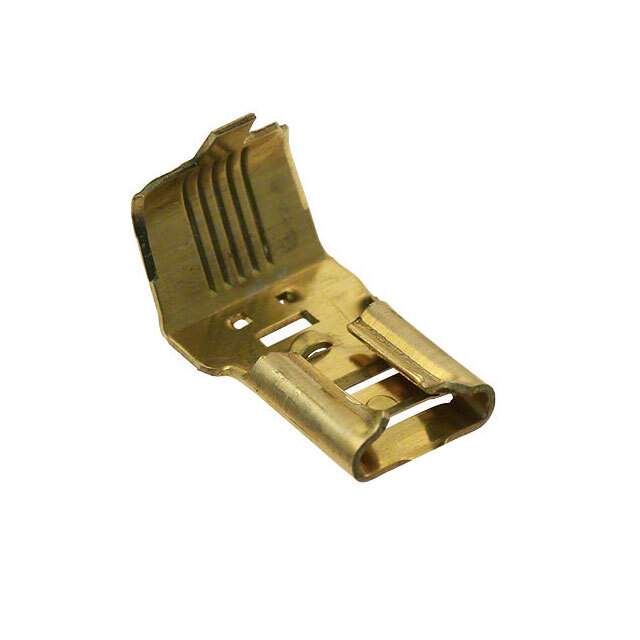

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Faston
Package Tape & Reel (TR),Cut Tape (CT)
Terminal Type Angled - 90°, Flag
Gender Female
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Tab Length 0.305" (7.75mm)
Termination Crimp
Wire Gauge 10-12 AWG
Insulation Non-Insulated
Mounting Type Free Hanging (In-Line), Right Angle
Contact Material Brass
Base Product Number 62011
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Names A27644TR,620111,A27644,62011-1-ND,A27644CT,A27644-ND
Standard Package 4,000
Win Source Part Number 1139478-62011-1
Ultra Librarian 3D Model Ultra Librarian 62011-1 CAD Model

Description

The 62011-1 is a female angled - 90° flag terminal from TE Connectivity AMP Connectors.

  • Package: tape & reel (TR), cut tape (CT)
  • Standard Package: 4,000
  • Tab Width: 0.250" (6.35mm)
  • Tab Thickness: 0.032" (0.81mm)
  • Tab Length: 0.305" (7.75mm)
  • Insulation Diameter: not specified
  • Insulation: non-insulated
  • Mounting: free hanging (in-line), right angle
  • Alternative Parts: 62011-1
  • ECCN: EAR99
  • HTSUS Code: 8536.90.4000
