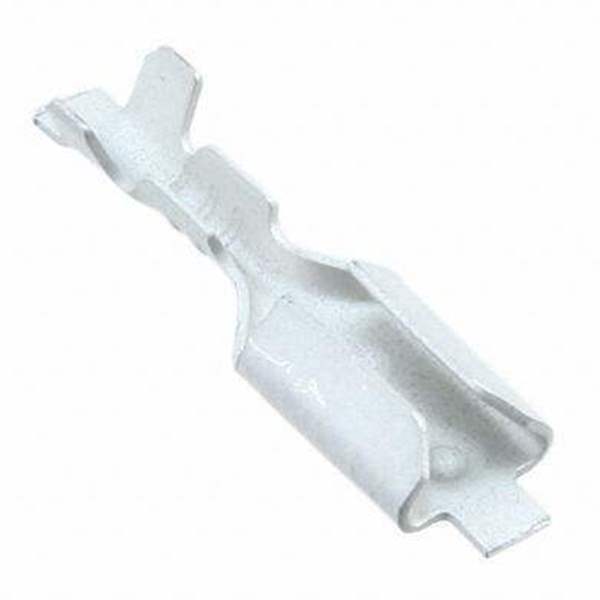

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects Terminals Specialized Connectors
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
Terminal Type Edge Disconnect
Termination Crimp
Win Source Part Number WS1209808-61455-2
Ultra Librarian 3D Model Ultra Librarian 61455-2 CAD Model

Description

Terminal Edge Disconnect Connector Crimp 22-30 AWG
