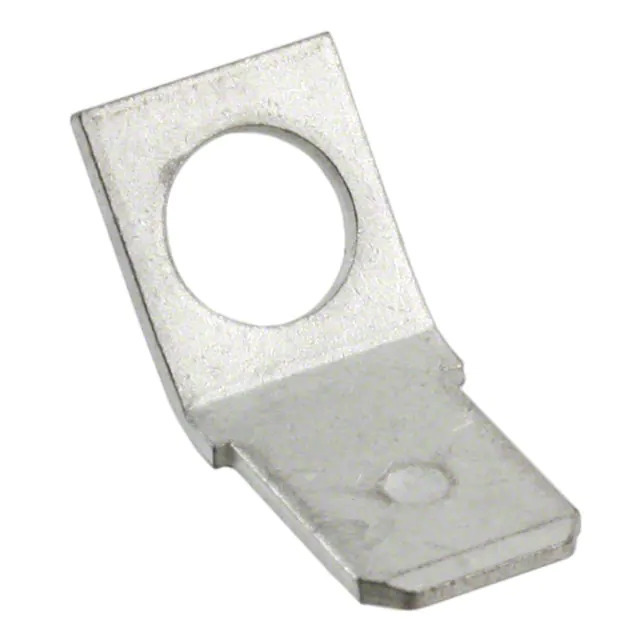

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Faston
Package Bulk
Product Status Active
Terminal Type Angled - 45°
Gender Male
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Tab Length -
Length - Overall -
Termination Screw, Rivet, Stud
Wire Gauge -
Insulation Non-Insulated
Mounting Type Board, Chassis
Features -
Color -
Contact Material Brass
Contact Finish Tin
Insulation Diameter -
Base Product Number 61365
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1364817-61365-1
Ultra Librarian 3D Model Ultra Librarian 61365-1 CAD Model

Description

The 1364817-61365-1 is a quick disconnect connector from the TE Connectivity AMP Connectors Faston series.

  • Terminal Type: Male
  • Tab Width: 0.250"
  • Tab Thickness: 0.032"
  • Insulation: Non-Insulated
  • Contact Finish: Tin
  • Mounting: Board and Chassis
  • Terminal Type: Angled, 45 degrees
  • Material: Brass
  • Tab Length: 0.250" (6.35mm)
