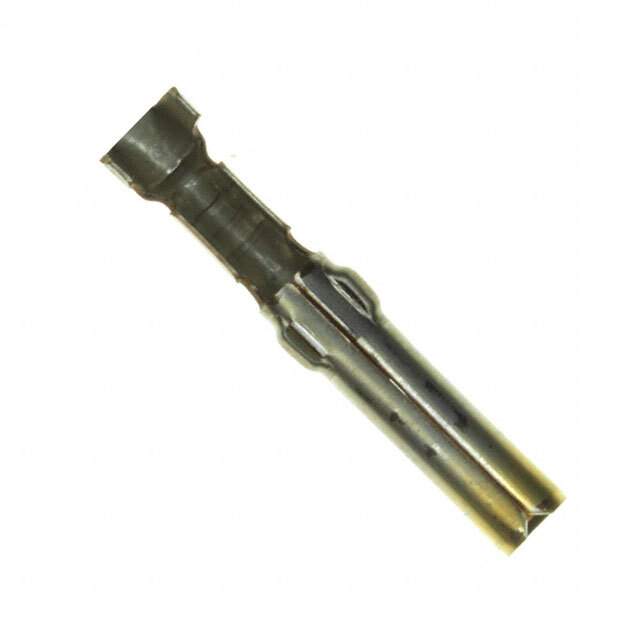

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Rectangular Connector Contacts
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Pin or Socket Socket
Contact Termination Crimp
Wire Gauge 18-24 AWG
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Base Product Number 61314
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number A25557,A25557-ND,613146,A25559TR,-61314-6-SI,61314-6-ND,A25559CT
Standard Package 7,000
Win Source Part Number 1334288-61314-6
Ultra Librarian 3D Model Ultra Librarian 61314-6 CAD Model

Description

This TE Connectivity AMP Connectors rectangular connector contact is a socket type with a wire gauge of 18-24 AWG. It is terminated with crimp and has a contact finish of gold with a thickness of 30.0µin.

  • Contact Type: Socket
  • Wire Gauge: 18-24 AWG
  • Termination: Crimp
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin
  • Application Suitability: High Reliability
  • Packaging: Reel - TR
  • Standard Package: 7,000 pieces
  • RoHS Compliant: Yes
  • ECCN: EAR99
  • HTSUS: 8536.90.4000
