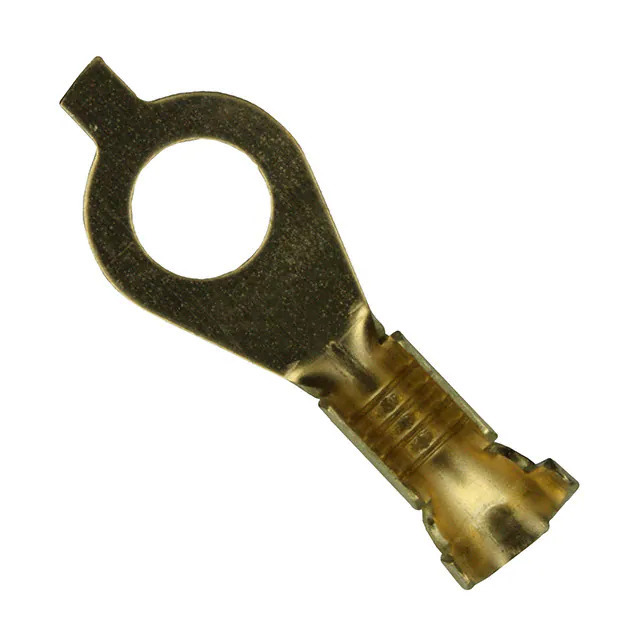

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Ring Connectors
Mfr TE Connectivity AMP Connectors
Series -
Package Tape & Reel (TR)
Product Status Active
Terminal Type Circular
Stud/Tab Size 8 Stud
Thickness 0.018" (0.46mm)
Width - Outer Edges 0.295" (7.49mm)
Length - Overall 0.734" (18.64mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Wire Gauge 14-18 AWG
Insulation Non-Insulated
Features Serrated Termination
Color -
Contact Material Brass
Contact Finish -
Insulation Diameter 0.100" ~ 0.140" (2.54mm ~ 3.56mm)
Material - Insulation -
Base Product Number 60771
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1364951-60771-1
Ultra Librarian 3D Model Ultra Librarian 60771-1 CAD Model

Description

The TE Connectivity AMP Connectors 1364951-60771-1 is a Ring Connector designed for quick and easy electrical connections.

  • Features: Serrated Termination
  • Material: Brass
  • Termination: Crimp
  • Wire Gauge: 14-18 AWG
  • Insulation: Non-Insulated
  • Overall Length: 0.734" (18.64mm)
  • Width: 0.295" (7.49mm)
  • Mounting: Free Hanging (In-Line)
