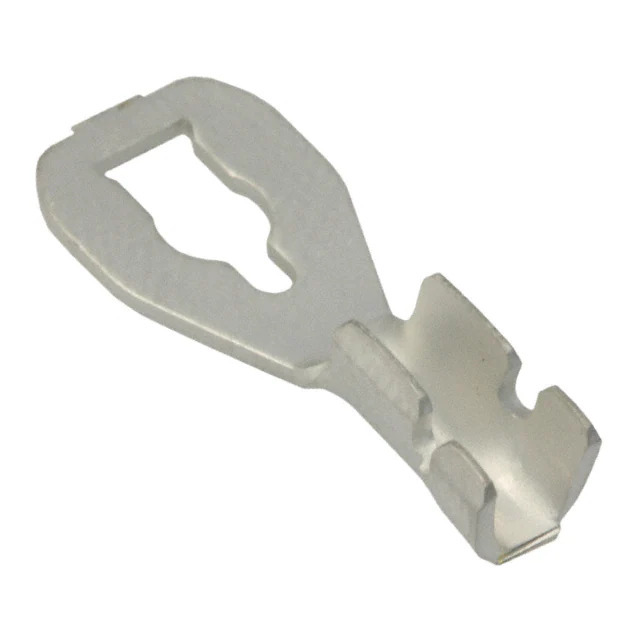

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Spade Connectors
Mfr TE Connectivity AMP Connectors
Series -
Package Tape & Reel (TR)
Product Status Active
Terminal Type Spring, Snap
Stud/Tab Size 6 Stud
Width - Outer Edges 0.343" (8.71mm)
Length - Overall 0.745" (18.92mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Wire Gauge 14-18 AWG
Insulation Non-Insulated
Features -
Color -
Contact Finish Tin
Contact Material Brass
Insulation Diameter 0.100" ~ 0.140" (2.54mm ~ 3.56mm)
Material - Insulation -
Length - Ring Center to Termination 0.312" (7.92mm)
Length - Termination -
Tongue Inside Opening 0.120" (3.05mm)
Base Product Number 60187
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1364692-60187-2
Ultra Librarian 3D Model Ultra Librarian 60187-2 CAD Model

Description

The TE Connectivity AMP Connectors Spade Connector is a versatile component for electrical connections.

  • Mounting Type: Free hanging (in-line)
  • Wire Gauge: 14-18 AWG
  • Contact Finish: Tin
  • Insulation: Non-Insulated
  • Overall Length: 0.745" (18.92mm)
  • Width: 0.343" (8.71mm)
  • Terminal Type: Spring snap
  • Product Category: Connectors and Interconnects
  • Product Status: Active
