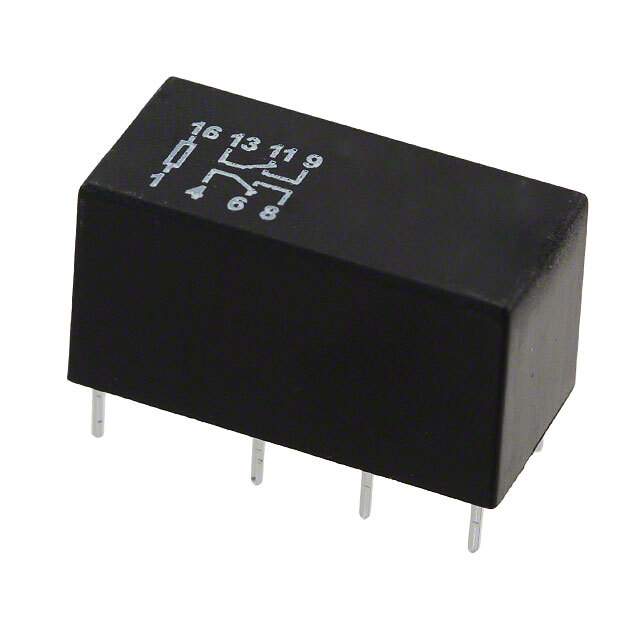

TE Connectivity's Signal Relays, Up to 2 Amps is a telecom relay with a non-latching coil type.

• Contacts: 2
• Contact Material: gold and silver
• Current Rating: 2 A
• Contact Resistance: 70 mΩ
• Coil Resistance: 1.05 kΩ
• Coil Current: 22.86 mA
• Contact Current Rating: 2 A
• Operate Time: 5 ms
• Release Time: 3 ms
• Coil Power: 550 mW
• Case/Package: DIP
• Throw Configuration: DPDT
• Mount: through hole
• Maximum Operating Temperature: 85 °C
• Minimum Operating Temperature: -55 °C
• Voltage Rating (AC): 250 V
• Max Voltage Rating (AC): 250 V
• Max Voltage Rating (DC): 220 V
• Max Current Rating: 2 A
• RoHS Compliant: Yes
• ELV Compliant: Yes
• Supply and demand status: shortage
