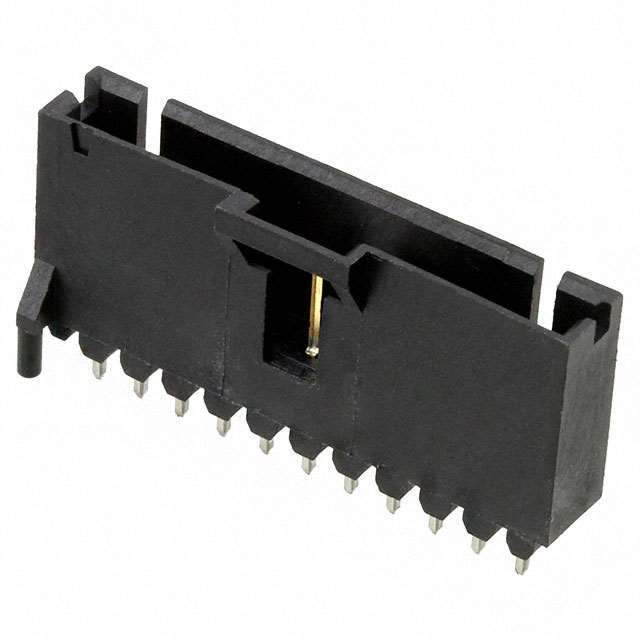

The TE Connectivity AMP Connectors 1332482-6-104809-0 is a header male pin connector with 11 positions and a pitch of 0.100" (2.54mm).

• Contact Type: Header Male Pin
• Positions: 11
• Pitch: 0.100" (2.54mm)
• Contact Finish (Mating): Gold
• Contact Finish (Post): Tin
• Contact Finish Thickness (Mating): 15.0µin (0.38µm)
• Contact Finish Thickness (Post): 100.0µin (2.54µm)
• Mounting: Through-Hole
• Fastening: Latch Holder
• Shrouded: 4 Walls
• Contact Shape: Square
• Operating Temperature: -65°C to 105°C
• Applications: Automotive, General Purpose, Medical, and Telecommunications
• MSL Level: 1 (Unlimited)
• HTSUS: 8536.69.4040
• RoHS Compliant: Yes
