Same model may have multiple batches, images only for reference.

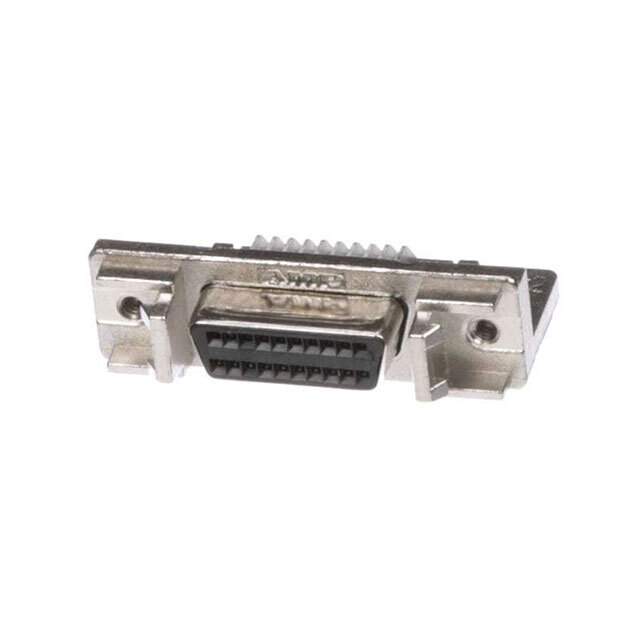

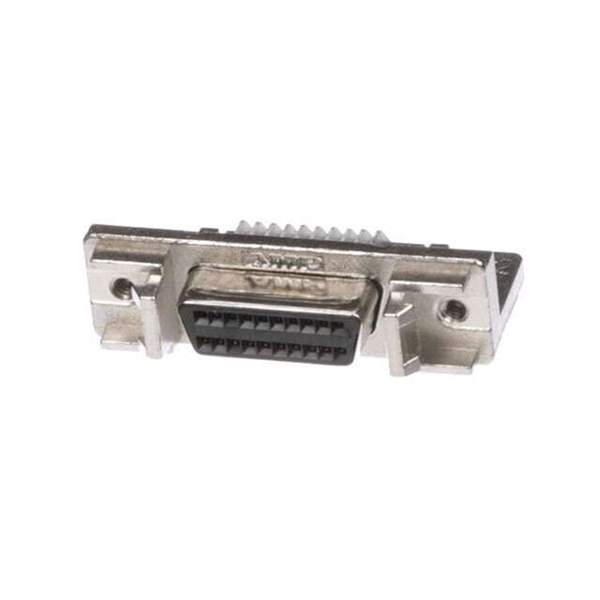

5787190-1 Real Image
Same model may have multiple batches, images only for reference.

5787190-1

Part No 5787190-1
Manufacturer TE Connectivity
Catalog D - SUB, D - SHAPED connectors
Description CONN D-TYPE RCPT 20POS R/A SLDR
Datasheet
5787190-1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Series AMPLIMITE .050 III
Packaging Tube
Connector Style D-Type
Connector Type Receptacle, Female Sockets
Number of Positions 20
Number of Rows 2
Shell Size, Connector Layout 0.050 Pitch x 0.100 Row to Row
Contact Type Signal
Mounting Board Edge, Through Hole, Right Angle
Flange Feature Housing/Shell (2-56); Latchblocks, Rails
Termination Solder
Features Shielded
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Material Flammability Rating UL94 V-0
Operating Temperature Range -55°C ~ 105°C
Voltage Rating 30V
Current Rating 1A
Color Black
Housing Material Thermoplastic
Contact Material Phosphor Bronze
Backset Spacing 0.146" (3.71mm)
Win Source Part Number 764074-5787190-1
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 5787190-1 CAD Model

Description

The TE Connectivity AMP Connectors 764074-5787190-1 is a D-type connector from TE Connectivity AMP Connectors.

  • Category: Connectors, Interconnects
  • Positions: 20
  • Color: Black
  • Voltage Rating: 30V
  • Current Rating: 1A
