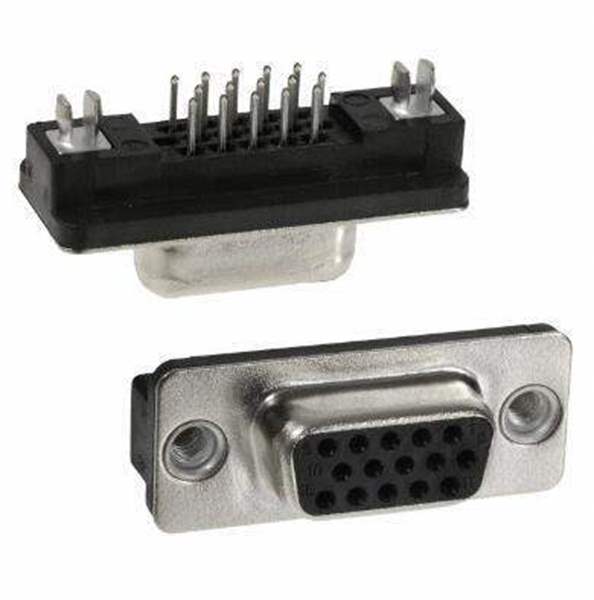

5749374-3 TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

5749374-3

Part No 5749374-3
Manufacturer TE Connectivity
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB HD RCPT 15P VERT SLDR
Datasheet
5749374-3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects D-Sub, D-Shaped Connectors D-Sub Connector Assemblies
Package Tray
Product Status Obsolete
Connector Type Receptacle, Female Sockets
Shell Size, Connector Layout 1 (DE, E) High Density
Termination Solder
Shell Material, Finish Steel, Nickel Plated
Contact Finish Thickness 30.0µin (0.76µm)
Material Flammability Rating UL94 V-0
Win Source Part Number WS1209608-5749374-3
Ultra Librarian 3D Model Ultra Librarian 5749374-3 CAD Model

Description

15 Position D-Sub, High Density Receptacle, Female Sockets Connector
