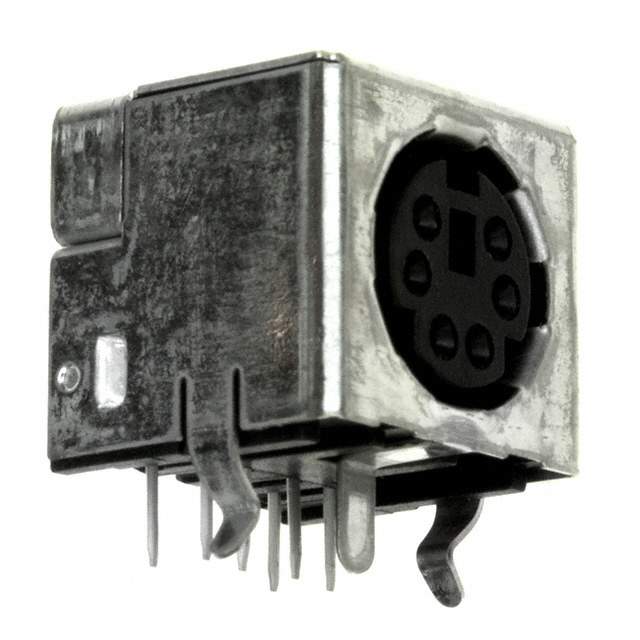

5749231-1 Real Image
Same model may have multiple batches, images only for reference.

5749231-1

Part No 5749231-1
Manufacturer TE Connectivity
Catalog Circular Connectors - Assemblies
Description CONN RCPT FMALE MINI DIN 6P SLDR / 6 Position Circular Connector Receptacle, Female Sockets Solder
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Circular Connectors - Circular Connector Assemblies
Mfr TE Connectivity AMP Connectors
Package Tube
Connector Type Receptacle, Female Sockets
Number of Positions 6
Shell Size - Insert Mini DIN
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Push-Pull
Orientation Keyed
Primary Material Plastic
Shell Material Thermoplastic
Contact Finish - Mating Gold
Material Flammability Rating UL94 V-0
Features Board Lock
Shielding Shielded
Current Rating (Amps) 1A
Voltage Rating 30VDC
Temperature Range - Operating -55°C ~ 105°C
Contact Material Copper Alloy
Contact Finish Thickness - Mating Flash
Applications Audio, Video
Base Product Number 5749231
Standard Package 37
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4020
Win Source Part Number 1350436-5749231-1
Ultra Librarian 3D Model Ultra Librarian 5749231-1 CAD Model

Description

The TE Connectivity AMP Connectors circular connector assembly is a receptacle connector with female sockets and a board lock feature.

  • Positions: 6
  • Shielded: Yes
  • Application: Audio and Video
  • Keying: Yes
  • Mounting Type: Through Hole, Right Angle
  • Fastening Type: Push-Pull
  • Voltage Rating: 30VDC
  • Contact Material: Copper Alloy
  • Flammability Rating: UL94 V-0
  • Operating Temperature: -55°C to 105°C
  • Shell Size: Mini DIN
  • Contact Finish (Mating): Gold
  • Standard Package: 37
  • Packaging: Tube
