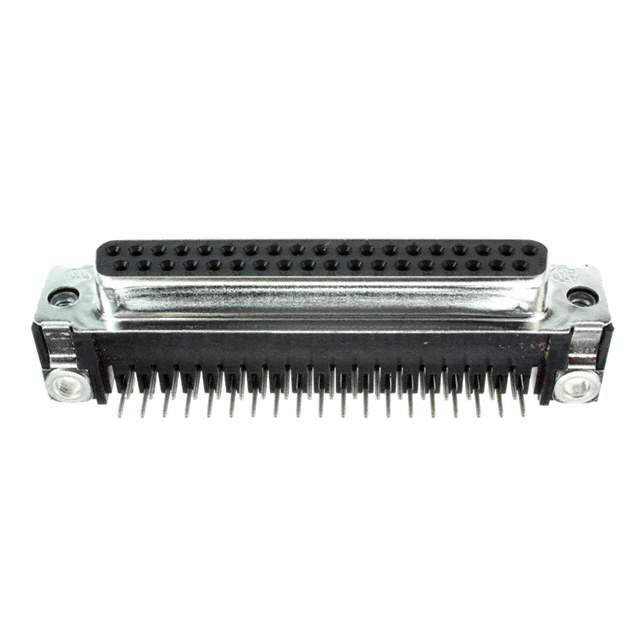

5745784-4 Real Image
Same model may have multiple batches, images only for reference.

5745784-4

Part No 5745784-4
Manufacturer TE Connectivity
Catalog D - SUB, D - SHAPED connectors
Description CONN D-SUB RCPT 37POS R/A SOLDER
Datasheet
5745784-4 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Series AMPLIMITE HD-20
Packaging Tray
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 37
Number of Rows 2
Shell Size, Connector Layout 4 (DC, C)
Contact Type Signal
Mounting Through Hole, Right Angle
Flange Feature Housing/Shell (4-40)
Termination Solder
Features Ground Strap
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness 30μin (0.76μm)
Material Flammability Rating UL94 V-0
Operating Temperature Range -55°C ~ 105°C
Voltage Rating 125V
Current Rating 6A
Color Black
Housing Material Thermoplastic
Contact Material Phosphor Bronze
Backset Spacing 0.318" (8.08mm)
Win Source Part Number 764065-5745784-4
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 5745784-4 CAD Model

Description

The TE Connectivity AMP Connectors 764065-5745784-4 is a high-density D-sub connector receptacle from TE Connectivity AMP Connectors.

  • Positions: 37
  • Features: Ground Strap
  • Socket Type: Female
  • Housing Material: Thermoplastic
  • Color: Black
  • Voltage Rating: 125V
  • Current Rating: 6A
  • Operating Temperature Range: -55°C to 105°C
  • Contact Finish: Gold
  • Contact Finish Thickness: 30μin (0.76μm)
  • Contact Material: Phosphor Bronze
  • Mounting Type: Through-Hole, Right-Angle
  • Flange Feature: Housing/Shell (4-40)
  • Shell Material: Steel
  • Shell Finish: Tin Plated
