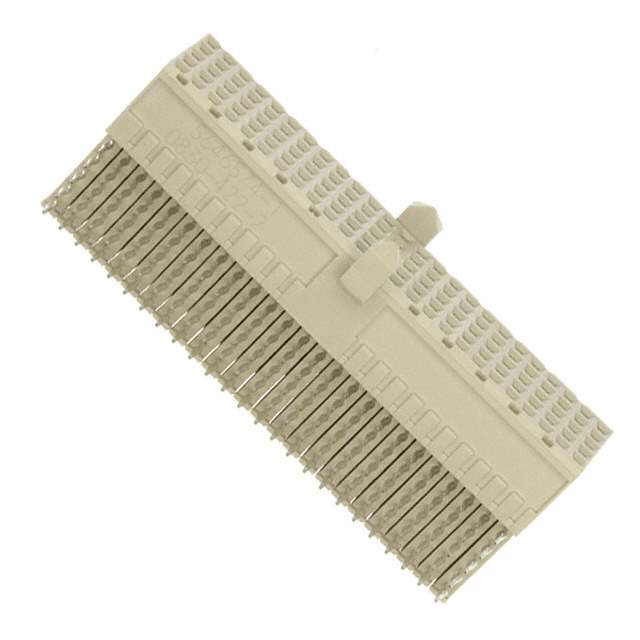

5646574-1 Real Image
Same model may have multiple batches, images only for reference.

5646574-1

Part No 5646574-1
Manufacturer TE Connectivity
Catalog Backplane Connectors
Description CONN RECEPT 125POS 2MM PRESS-FIT / 125 Position Receptacle, Female Sockets Connector 0.079" (2.00mm) Board Edge, Through Hole, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Backplane Connectors>Hard Metric, Standard
Manufacturer TE Connectivity AMP Connectors
Packaging Tube
Connector Type Receptacle, Female Sockets
Connector Style AB 25
Number of Positions 125
Number of Positions Loaded All
Pitch 0.079" (2.00mm)
Number of Rows 5
Mounting Board Edge, Through Hole, Right Angle
Termination Press-Fit
Connector Usage Backplane
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Current Rating (Amps) 1.5 A
Voltage Rating 500Vrms
Temperature Range - Operating -55°C ~ 125°C
Base Product Number 5646574
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number A97816,56465741
Standard Package 11
Win Source Part Number 1333249-5646574-1
Ultra Librarian 3D Model Ultra Librarian 5646574-1 CAD Model

Description

The TE Connectivity AMP Connectors 1333249-5646574-1 is a 125-position receptacle female socket connector with a pitch of 0.079 inches (2.00mm) and a voltage rating of 500Vrms.

  • Series: AB 25
  • Usage: Backplane
  • Termination: Press-fit
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Mounting: Board edge, through-hole, and right-angle
  • RoHS Compliant: Yes
  • Operating Temperature: -55°C to 125°C
