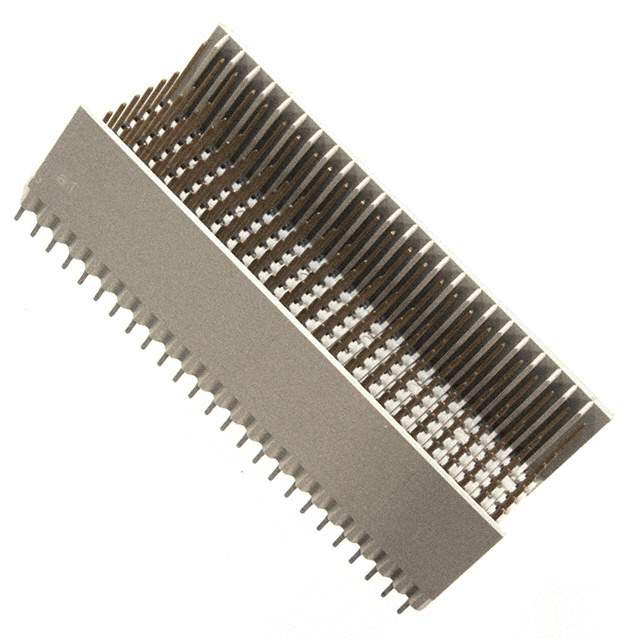

5646357-9 Real Image
Same model may have multiple batches, images only for reference.

5646357-9

Part No 5646357-9
Manufacturer TE Connectivity
Catalog Backplane Connectors
Description CONN HEADER 250POS 2MM PRESS-FIT / 250 (200 + 50 Ground) Position Header, Male Pins Connector 0.079" (2.00mm) Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Backplane Connectors>Hard Metric, Standard
Manufacturer TE Connectivity AMP Connectors
Packaging Tube
Connector Type Header, Male Pins
Connector Style E 25
Number of Positions 250 (200 + 50 Ground)
Number of Positions Loaded All
Pitch 0.079" (2.00mm)
Number of Rows 8 + 2
Mounting Through Hole
Termination Press-Fit
Connector Usage Backplane
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Current Rating (Amps) 1.5 A
Voltage Rating 750Vrms
Temperature Range - Operating -55°C ~ 125°C
Base Product Number 5646357
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 10
Win Source Part Number 1333312-5646357-9
Ultra Librarian 3D Model Ultra Librarian 5646357-9 CAD Model

Description

The 1333312-5646357-9 from TE Connectivity AMP Connectors is a header male pin connector with a press-fit termination.

  • Pitch: 0.079 inches (2.00mm)
  • Number of Positions: 250 (200 positions and 50 ground positions)
  • Voltage Rating: 750Vrms
  • Current Rating: 1.5A
  • Connector Style: E 25
  • Number of Rows: 8+2
  • Contact Finish: gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Operating Temperature Range: -55°C to 125°C
  • RoHS Compliance: RoHS compliant
  • Packaging: tube
  • Standard Package: 10
