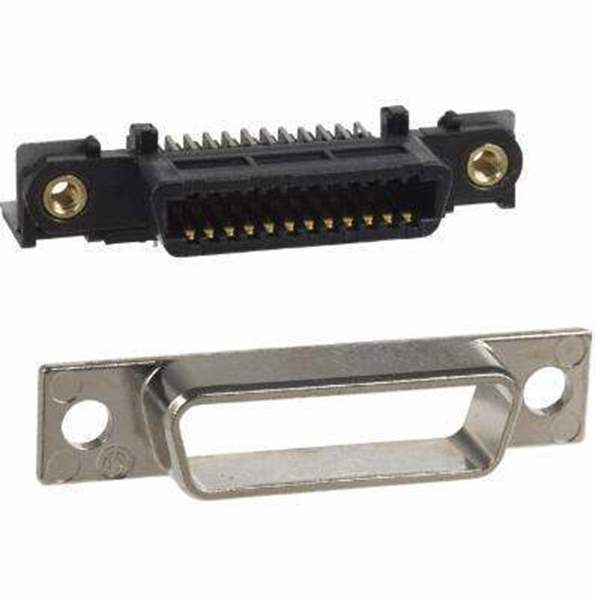

5555139-2 TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects D-Sub, D-Shaped Connectors Centronics Connectors
Package Tube
Product Status Active
Connector Type Receptacle
Mounting Type Through Hole, Right Angle
Termination Solder
Flange Feature Housing/Shell (6-32)
Features Shielded
Win Source Part Number WS1209399-5555139-2
Ultra Librarian 3D Model Ultra Librarian 5555139-2 CAD Model

Description

24 Position Receptacle Connector Through Hole, Right Angle Solder
