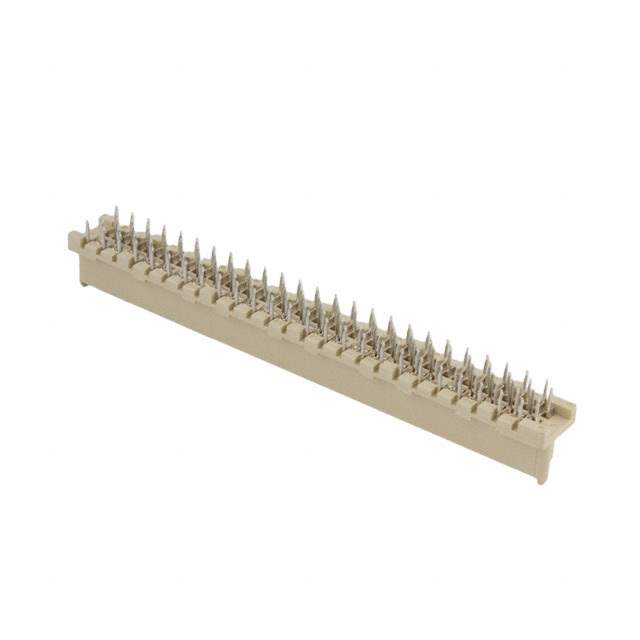

5536279-4 Real Image
Same model may have multiple batches, images only for reference.

5536279-4

Part No 5536279-4
Manufacturer TE Connectivity
Catalog Backplane Connectors
Description CONN RCPT 100POS 0.05 GOLD PCB / 100 Position Receptacle Connector 0.050" (1.27mm) Through Hole Gold
Datasheet
5536279-4 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr TE Connectivity AMP Connectors
Series Micro-Strip
Package Tube
Product Status Obsolete
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board
Number of Positions 100
Number of Positions Loaded All
Pitch - Mating 0.050" (1.27mm)
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Insulation Color Natural
Insulation Height 0.320" (8.13mm)
Contact Length - Post 0.095" (2.41mm)
Temperature Range - Operating -65°C ~ 125°C
Contact Finish - Post Tin
Mated Stacking Heights 10.92mm, 17.78mm, 18.75mm
Features Board Guide, Ground Bus (Plane)
Voltage Rating 30VAC
Insulation Material Thermoplastic
Contact Shape Square
Contact Material Phosphor Bronze
Contact Finish Thickness - Post 100.0µin (2.54µm)
Base Product Number 5536279
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names 55362794,2266-5536279-4,-5536279-4-SI
Standard Package 8
Win Source Part Number 1027681-5536279-4
Ultra Librarian 3D Model Ultra Librarian 5536279-4 CAD Model

Description

The 1027681-5536279-4 is a rectangular connector receptacle manufactured by TE Connectivity AMP Connectors.

  • Category: Connectors, Interconnects
  • Family: Rectangular Connectors - Headers, Receptacles, Female Sockets
  • Positions: 100
  • Loaded Positions: All
  • Pitch-Mating: 0.050" (1.27mm)
  • Contact Finish-Mating: Gold
  • Temperature Range: -65°C to 125°C
  • RoHS Compliant: Yes
