Same model may have multiple batches, images only for reference.

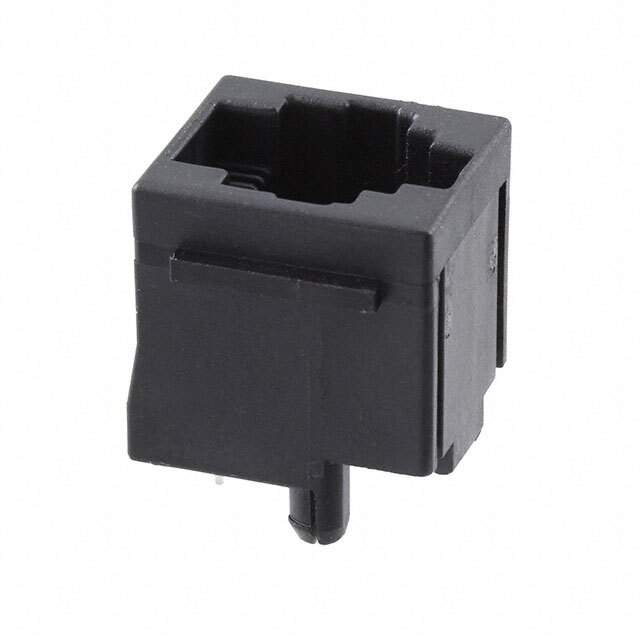

5520258-2 Real Image
Same model may have multiple batches, images only for reference.

5520258-2

Part No 5520258-2
Manufacturer TE Connectivity
Catalog Modular Connectors
Description CONN MOD JACK 6P4C VERT UNSHLD  /  Jack Modular Connector 6p4c (RJ11, RJ14) Vertical Unshielded Cat3
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Modular Connectors - Jacks
Mfr TE Connectivity AMP Connectors
Package Tray
Connector Type Jack
Number of Positions/Contacts 6p4c (RJ11, RJ14)
Number of Ports 1
Number of Rows 1
Mounting Type Through Hole
Orientation Vertical
Termination Solder
Shielding Unshielded
Ratings Cat3
Features Board Lock, Panel Stops
LED Color Does Not Contain LED
Tab Direction User Selectable
Contact Material Phosphor Bronze
Contact Finish Gold
Contact Finish Thickness 50.0µin (1.27µm)
Housing Material Polybutylene Terephthalate (PBT), Polyester
Temperature Range - Operating -40°C ~ 85°C
Base Product Number 5520258
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names A31410,2266-5520258-2,55202582,-5520258-2-SI
Standard Package 144
Win Source Part Number 1207165-5520258-2
Ultra Librarian 3D Model Ultra Librarian 5520258-2 CAD Model

Description

The 5520258-2 is a modular connector jack from TE Connectivity AMP Connectors.

  • Connector Type: 6p4c (RJ11, RJ14)
  • Contact Finish: Gold
  • Contact Finish Thickness: 50.0μin (1.27μm)
  • Temperature Range: -40°C to 85°C
  • Shielded: Yes
  • Housing Material: Polybutylene Terephthalate (PBT), Polyester
  • Orientation: Vertical
  • Features: Board Lock and Panel Stops
  • Number of Ports: 1
  • LED Color: Unspecified
  • Package: Tray
  • Rating: Cat3
  • Mounting: Through-Hole
