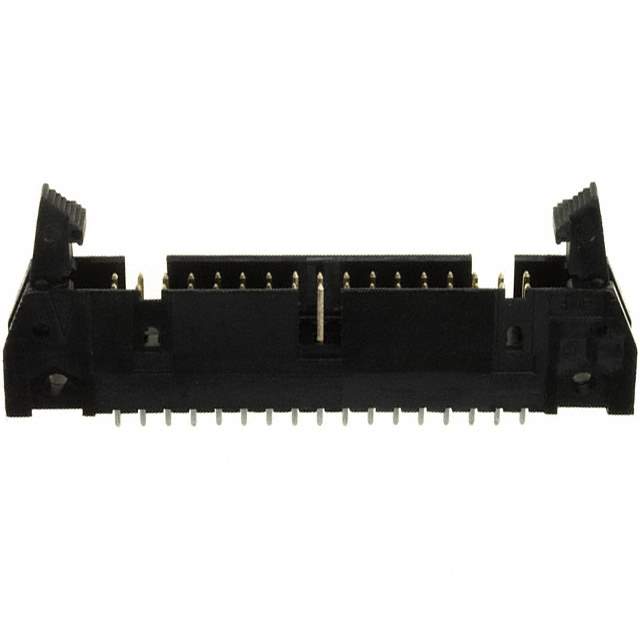

Same model may have multiple batches, images only for reference.

5499160-8

Name: 5499160-8
Brand: TE Connectivity
SKU: 1380925
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	5499160-8
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 34POS 2.54MM / Connector Header Through Hole 34 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Mfr	TE Connectivity
Series	AMP-Latch
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	34
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Latch Lock/Eject Hooks, Short
Contact Length - Mating	0.240" (6.10mm)
Contact Length - Post	0.110" (2.79mm)
Overall Contact Length	0.639" (16.23mm)
Insulation Height	0.549" (13.94mm)
Contact Shape	Square
Contact Finish - Mating	Gold or Gold-Palladium
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin
Contact Material	-
Insulation Material	-
Features	Keying Slot, Mounting Flange
Temperature Range - Operating	-55°C ~ 105°C
Ingress Protection	-
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	1A
Voltage Rating	-
Mated Stacking Heights	-
Contact Finish Thickness - Post	100.0µin (2.54µm)
Applications	-
Base Product Number	5499160
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	40 pcs
Win Source Part Number	1380925-5499160-8
Ultra Librarian 3D Model	Ultra Librarian 5499160-8 CAD Model

Alternative Products

Description

The AMP-Latch Header is a high-quality connector designed for use in electronic devices.

Part Status: Active
Connector Type: Header, Male Pin
Number of Positions: 34
Pitch: 0.100" (2.54mm)
Number of Rows: 2
Row Spacing: 0.100" (2.54mm)
Mounting Type: Through Hole
Fastening Type: Latch Lock/Eject Hooks
Contact Finish - Mating: Gold or Gold-Palladium
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Insulation Height: 0.549" (13.94mm)
Operating Temperature: -55°C ~ 105°C
Voltage Rating: -
Current Rating (Per Contact): 1A
Contact Material: Brass
Contact Finish - Post: Tin
Mated Stacking Heights: -
Ingress Protection: -
Material Flammability Rating: UL94 V-0
Color: Black
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected
Applications: Board to Cable/Wire
