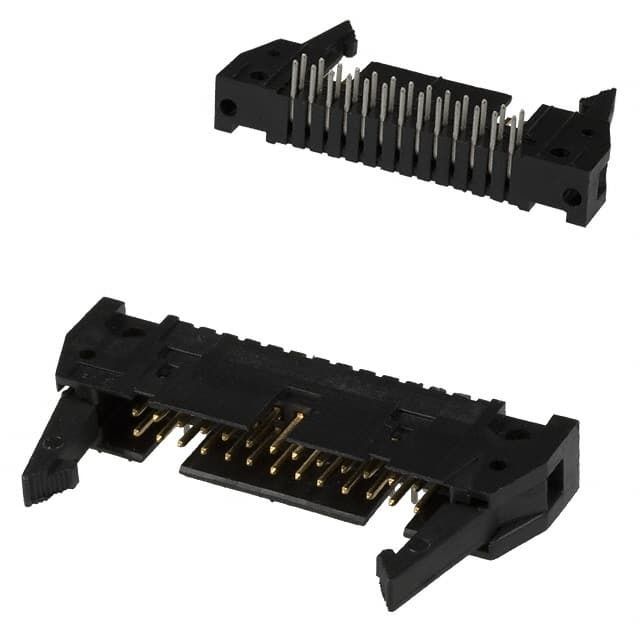

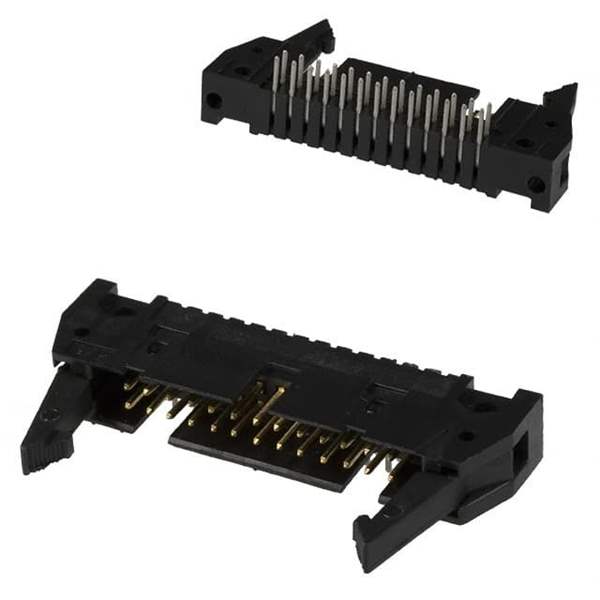

5499141-6

Name: 5499141-6
Brand: TE Connectivity
SKU: 856523
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	5499141-6
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 26POS 2.54MM / Connector Header Through Hole, Right Angle 26 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	TE Connectivity
Series	AMP-Latch
Package	Tray
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	26
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Latch Lock/Eject Hooks, Long
Contact Length - Mating	0.240" (6.10mm)
Contact Length - Post	0.110" (2.79mm)
Insulation Height	0.315" (8.00mm)
Contact Shape	Square
Contact Finish - Mating	Gold or Gold-Palladium
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin
Contact Material	Brass
Features	Keying Slot, Mounting Flange
Temperature Range - Operating	-65°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	1A per Contact
Voltage Rating	250VAC
Contact Finish Thickness - Post	100.0µin (2.54µm)
Base Product Number	5499141
Standard Package	40 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	856523-5499141-6
Ultra Librarian 3D Model	Ultra Librarian 5499141-6 CAD Model

Alternative Products

Description

The TE Connectivity electronic component with the Win Source Part Number 856523-5499141-6 is a rectangular connector header with male pins.

Positions: 26
Features: Keying Slot and Mounting Flange
Connector Type: Header
Contact Type: Male Pin
Positions Loaded: All
Rows: Two
Termination Method: Solder
Fastening Type: Latch Lock/Eject Hooks, Long
Package: Tray
Pieces: 40
Contact Material: Brass
Voltage Rating: 250VAC
Insulation Color: Black
Mounting Type: Through Hole, Right Angle
Shrouding: 4 Walls
Pitch (Mating): 0.100" (2.54mm)
Contact Finish (Mating): Gold or Gold-Palladium with a thickness of 30.0µin (0.76µm)
Contact Finish (Post): Tin, with a thickness of 100.0µin (2.54µm)
Operating Temperature Range: -65°C to 105°C
ECCN: EAR99
MSL Level: 1 (unlimited)
Current Rating per Contact: 1A
REACH Status: REACH unaffected
HTSUS Code: 8536.69.4040
Manufacturer: TE Connectivity
Product Status: Active
