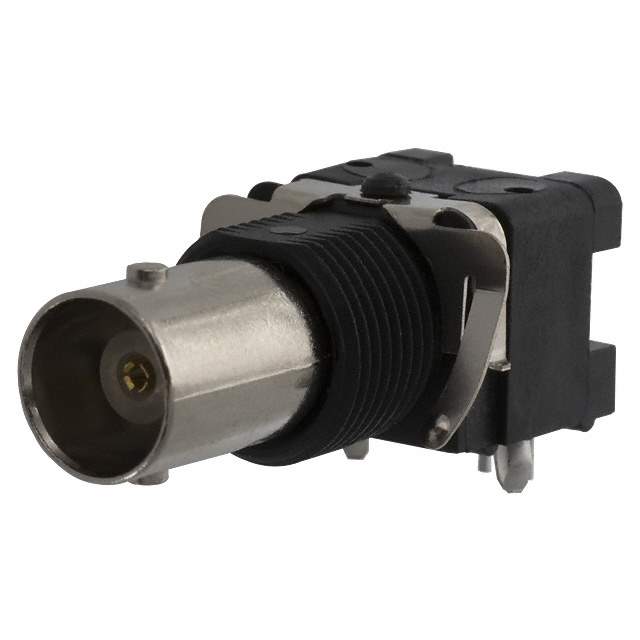

5413515-9 Real Image
Same model may have multiple batches, images only for reference.

5413515-9

Part No 5413515-9
Manufacturer TE Connectivity
Catalog Coaxial Connectors (RF) - Assemblies
Description CONN BNC JACK R/A 50 OHM PCB / BNC Connector Jack, Female Socket 50Ohm Panel Mount, Through Hole, Right Angle Solder
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Coaxial Connectors (RF) - Coaxial Connector (RF) Assemblies
Mfr TE Connectivity AMP Connectors
Package Bulk
Product Status Obsolete
Connector Style BNC
Connector Type Jack, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Type Panel Mount, Through Hole, Right Angle
Mounting Feature Bulkhead - Front Side Nut
Fastening Type Bayonet Lock
Frequency - Max 1 GHz
Number of Ports 1
Features Board Lock, Filter, Isolated
Housing Color Black, Silver
Center Contact Material Phosphor Bronze
Body Material Zinc
Body Finish Nickel
Center Contact Plating Gold
Dielectric Material Polymethylpentene (PMP)
Temperature Range - Operating -55°C ~ 85°C
Voltage Rating 500 V
Mating Cycles 500
Base Product Number 5413515
Standard Package 31
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4010
Win Source Part Number 1339221-5413515-9
Ultra Librarian 3D Model Ultra Librarian 5413515-9 CAD Model

Description

The 5413515-9 is a BNC coaxial connector assembly from TE Connectivity AMP Connectors.

  • Connector Type: Female Socket Jack
  • Fastening: Bayonet Lock
  • Features: Board Lock, Filter, Isolated
  • Voltage Rating: 500 V
  • Maximum Frequency: 1 GHz
  • Mounting: Bulkhead - Front Side Nut
  • Mounting Options: Panel, Through-Hole, Right Angle
  • Operating Temperature: -55°C to 85°C
  • Impedance: 50Ohm
  • Packaging: Bulk
  • Shielded Termination: Solder
  • Center Contact Material: Phosphor Bronze with Gold Plating
  • Body Finish: Nickel
  • Dielectric Material: Polymethylpentene (PMP)
