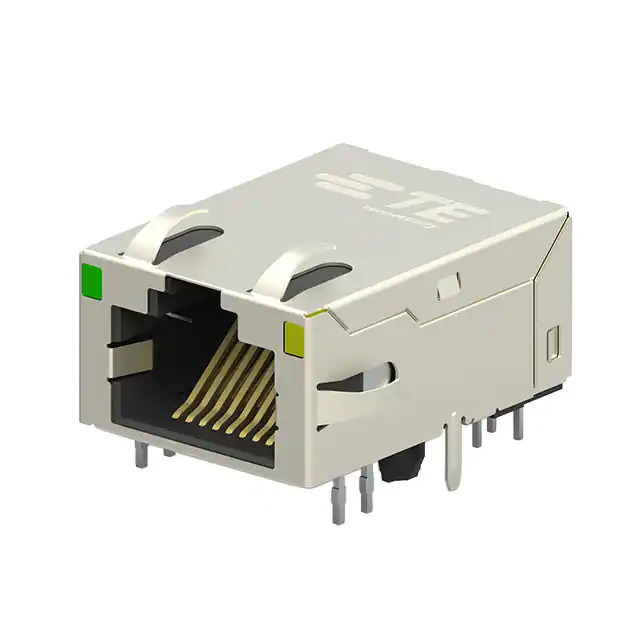

1-2301994-1

Name: 1-2301994-1
Brand: TE Connectivity
SKU: 1362659
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	1-2301994-1
Manufacturer	TE Connectivity
Catalog	Modular Connectors
Description	CONN JACK 1PORT PCB / 1 Port RJ45Through Hole
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Modular Connectors - Modular Connector Jacks With Magnetics
Mfr	TE Connectivity AMP Connectors
Series	-
Package	Tape & Reel (TR)
Product Status	Active
Connector Type	RJ45
Number of Ports	1
Number of Rows	1
Applications	-
Mounting Type	Through Hole
Orientation	90° Angle (Right)
Termination	Solder
Height Above Board	0.445" (11.30mm)
LED Color	Green, Orange - Yellow
Number of Cores per Jack	8
Shielding	Shielded, EMI Finger
Features	Board Guide, Board Lock
Tab Direction	Up
Contact Material	Copper Alloy
Contact Finish	Gold
Temperature Range - Operating	-40°C ~ 85°C
Contact Finish Thickness	30.0µin (0.76µm)
Shield Material	Brass
Housing Material	Liquid Crystal Polymer (LCP)
Base Product Number	2301994
MSL Level	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1362659-1-2301994-1
Ultra Librarian 3D Model	Ultra Librarian 1-2301994-1 CAD Model

Alternative Products

Description

The TE Connectivity AMP Connectors modular connector jack with magnetics is a high-quality component designed for use in various electronic applications.

Temperature Range: -40°C to 85°C
Board Guide: Yes
Board Lock: Yes
Shielding: Shielded with EMI finger
Contact Finish: Gold with a thickness of 30.0µin (0.76µm)
Orientation: 90° angle
Housing Material: Liquid crystal polymer (LCP)
Height Above Board: 0.445" (11.30mm)
Port: Single
LED Color: Green for link status and orange-yellow for activity
