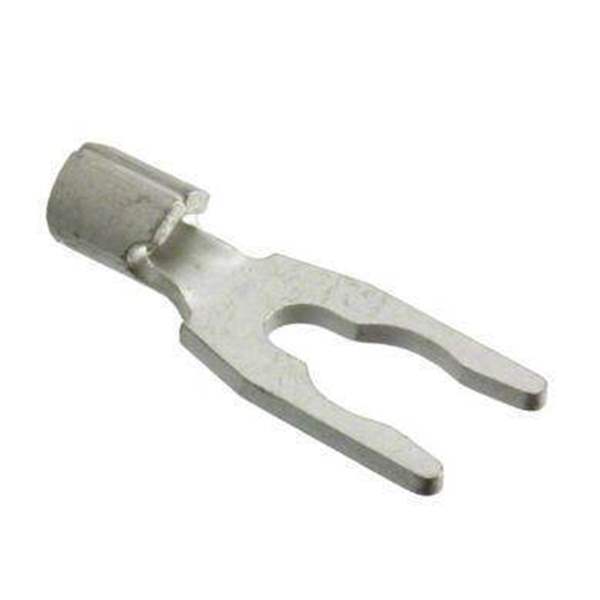

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects Terminals Spade Connectors
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
Terminal Type Spring, Snap
Stud/Tab Size 8 Stud
Width - Outer Edges 0.244" (6.20mm)
Length - Overall 0.637" (16.18mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Features Brazed Seam, Serrated Termination
Win Source Part Number WS1209248-53831-2
Ultra Librarian 3D Model Ultra Librarian 53831-2 CAD Model

Description

8 Stud Spade Terminal Connector Crimp 16-22 AWG
