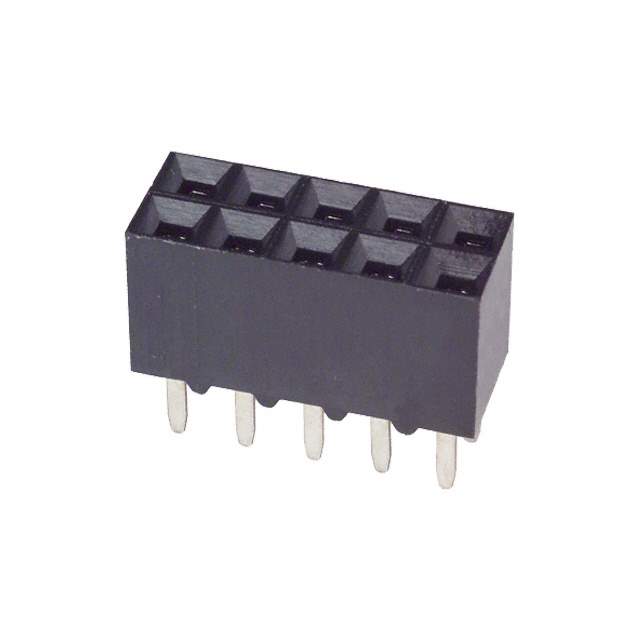

534998-5 Real Image
Same model may have multiple batches, images only for reference.

534998-5

Part No 534998-5
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN RECEPT 10POS .100 VERT DUAL
Datasheet
534998-5 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Series AMPMODU Mod IV
Packaging Tube
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board or Cable
Number of Positions 10
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Style Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30μin (0.76μm)
Insulation Color Black
Insulation Height 0.265" (6.73mm)
Contact Length - Post 0.125" (3.18mm)
Operating Temperature Range -65°C ~ 125°C
Contact Finish - Post Tin-Lead
Current Rating 2A
Insulation Material Thermoplastic, Glass Filled
Contact Shape Square
Contact Material Phosphor Bronze
Contact Finish Thickness - Post 150μin (3.81μm)
Win Source Part Number 763979-534998-5
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 534998-5 CAD Model

Description

{"ProductId":702357,"FormattedDescription":"

The AMPMODU Mod IV series from TE Connectivity AMP Connectors is a receptacle type connector that comes in tube packaging.

  • Positions: 10
  • Current Rating: 2A
  • Mounting Style: Through-hole
  • Connector Type: Female Socket
  • All Positions Loaded: Yes
  • Rows: 2
  • Termination: Through Solder
  • Fastening Type: Push-Pull
  • Contact Material: Phosphor Bronze
  • Insulation Material: Thermoplastic, Glass-filled
  • Connector Style: Board to Board or Cable
  • Pitch-Mating: 0.100\" (2.54mm)
  • Contact Finish-Mating: Gold
  • Contact Finish-Thickness-Mating: 30μin (0.76μm)
  • Contact Finish-Post: Tin-Lead
  • Contact Finish-Thickness-Post: 150μin (3.81μm)
  • Insulation Color: Black
  • Categories: Connectors, Interconnects
  • Row Spacing-Mating: 0.100\" (2.54mm)
  • Contact Length-Post: 0.125\" (3.18mm)
  • Insulation Height: 0.265\" (6.73mm)
  • Contact Shape: Square
  • Supply and Demand Status: Limited
"}
