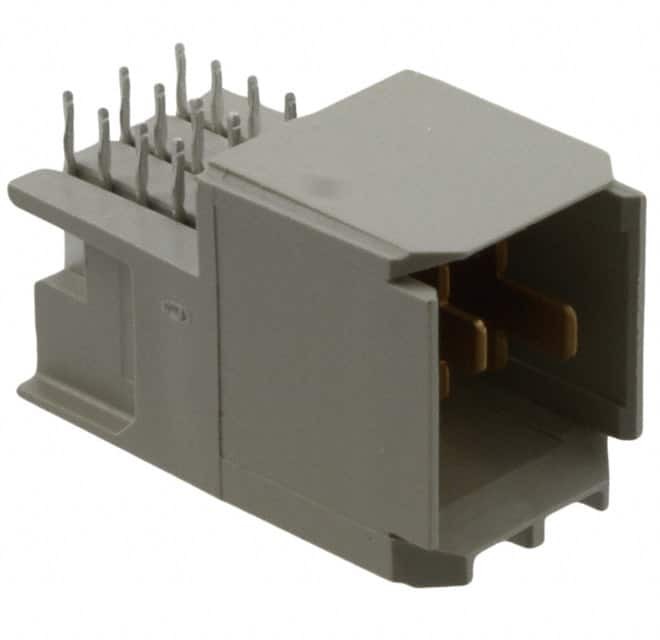

5223968-1

Name: 5223968-1
Brand: TE Connectivity
SKU: 856415
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	5223968-1
Manufacturer	TE Connectivity
Catalog	Backplane Connectors
Description	CONN HEADER BLADE PWR 3P EDGE MT
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Backplane Connectors - Specialized
Mfr	TE Connectivity
Series	UPM (Universal Power Modules)
Package	Tube
Product Status	Active
Connector Usage	Backplane
Connector Type	Header, Male Blades
Connector Style	Blade Power
Number of Positions	3
Number of Positions Loaded	All
Number of Rows	1
Mounting Type	Board Edge, Through Hole, Right Angle
Termination	Press-Fit
Contact Layout, Typical	3 Power
Features	Board Guide
Contact Finish	Gold or Gold-Palladium
Color	Gray
Material Flammability Rating	UL94 V-0
Temperature Range - Operating	-55°C ~ 125°C
Voltage Rating	250V
Base Product Number	5223968
Standard Package	48 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	856415-5223968-1
Ultra Librarian 3D Model	Ultra Librarian 5223968-1 CAD Model

Description

The Universal Power Modules (UPM) Header is a specialized backplane connector designed for high-performance applications.

Manufacturer: TE Connectivity
Color: Gray
Feature: Board guide
Connector Type: Male blades
Positions Loaded: All 3 positions
Termination: Press-fit
Contact Finish: Gold or gold-palladium
Package Quantity: 48 pcs
Application: Backplane
Voltage Rating: 250V
Material Flammability Rating: UL94 V-0
Operating Temperature Range: -55°C to 125°C
Product Series: Active
