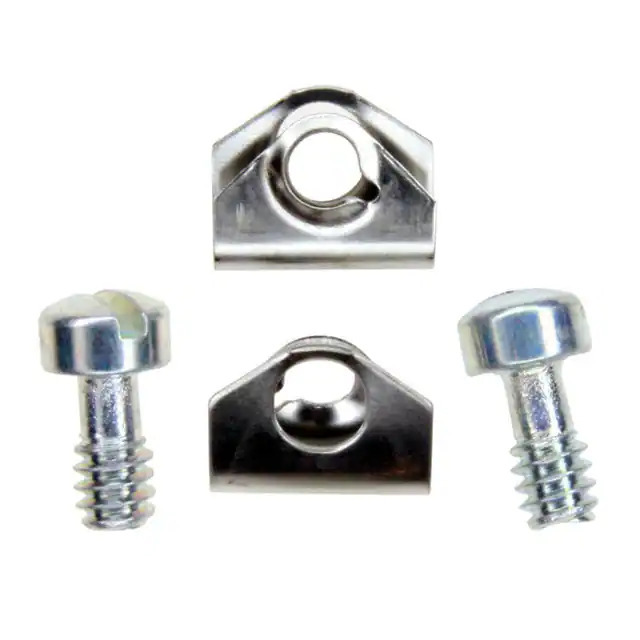

5205980-4 TE Connectivity
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub, D-Shaped Connector Jackscrews
Mfr TE Connectivity AMP Connectors
Series AMPLIMITE
Package Bulk
Product Status Active
Accessory Type Jackscrew, Slotted
For Use With/Related Products AMPLIMITE Series HDE, HDP
Features Clip
Length - Threaded Portion Below Head -
Length - Below Head 0.220" (5.59mm)
Thread Size 4-40
Base Product Number 5205980
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 7318.15.6080
Win Source Part Number 1364251-5205980-4
Ultra Librarian 3D Model Ultra Librarian 5205980-4 CAD Model

Description

The TE Connectivity AMP Connectors AMPLIMITE D-Sub, D-Shaped Connector Jackscrews are designed for use with AMPLIMITE Series HDE and HDP connectors.

  • Series: AMPLIMITE Series HDE and HDP
  • Thread Size: 4-40
  • Length Below Head: 0.220 inches (5.59mm)
  • Feature: Clip
