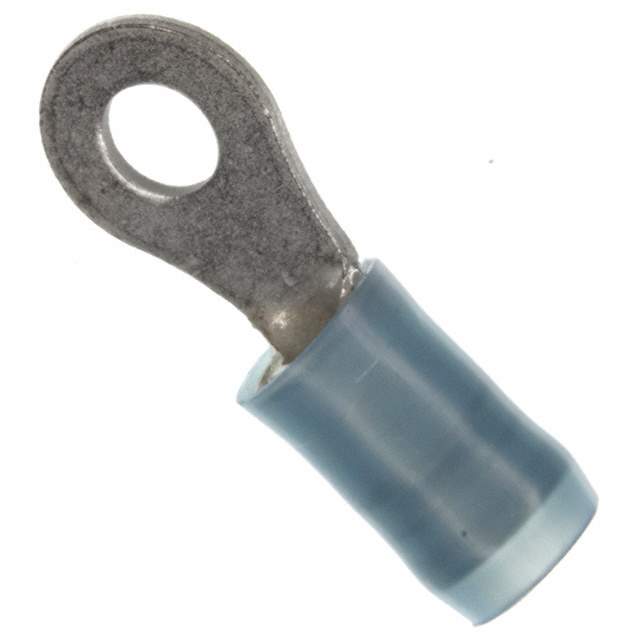

51864-1 Real Image
Same model may have multiple batches, images only for reference.

51864-1

Part No 51864-1
Manufacturer TE Connectivity
Catalog Terminals
Description CONN RING CIRC 14-16AWG #8 CRIMP / Ring Terminal Connector 8 Stud Circular 14-16 AWG Crimp
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Ring Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Terminal Type Circular
Stud/Tab Size 8 Stud
Thickness 0.031" (0.79mm)
Width - Outer Edges 0.312" (7.92mm)
Length - Overall 0.844" (21.44mm)
Mounting Free Hanging (In-Line)
Termination Crimp
Wire Gauge 14-16 AWG
Insulation Insulated
Color Blue
Contact Material Copper
Contact Finish Tin
Insulation Diameter 0.105" ~ 0.150" (2.67mm ~ 3.81mm)
Material - Insulation Polyamide (PA), Nylon
Base Product Number 51864
RoHS Status Not applicable
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number -51864-1-SI,2266-51864-1,51864-1-ND,A27255,518641
Standard Package 1,000
Win Source Part Number 1333738-51864-1
Ultra Librarian 3D Model Ultra Librarian 51864-1 CAD Model

Description

The TE Connectivity AMP Connectors 1333738-51864-1 is a circular ring connector that is designed for use in a range of applications.

  • Insulation: Insulated
  • Insulation Material: Polyamide (PA) and Nylon
  • Termination Type: Crimped
  • Contact Finish: Tin
  • Wire Gauge: 14-16 AWG
  • Stud/Tab Size: 8 Stud
  • Overall Length: 0.844 inches (21.44mm)
  • Width: 0.312 inches (7.92mm)
  • Thickness: 0.031 inches (0.79mm)
  • Packaging: Bulk
  • Standard Package: 1,000
