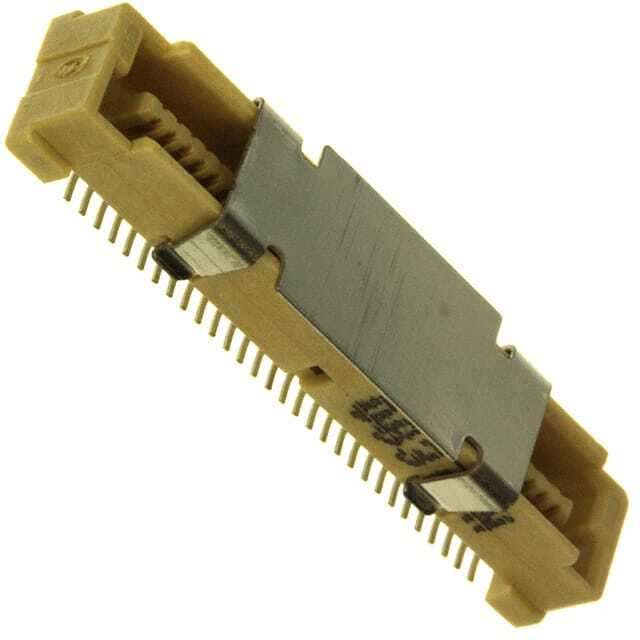

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr TE Connectivity
Series Free Height (FH)
Package Tape & Reel
Product Status Active
Connector Type Plug, Center Strip Contacts
Number of Positions 60
Pitch 0.031" (0.80mm)
Number of Rows 2
Mounting Type Surface Mount
Features Board Guide
Contact Finish Gold
Contact Finish Thickness 8.00µin (0.203µm)
Mated Stacking Heights 5mm, 9mm, 13mm, 17mm
Height Above Board 0.191" (4.85mm)
Base Product Number 5177986
Standard Package 900 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 856391-5177986-2
Ultra Librarian 3D Model Ultra Librarian 5177986-2 CAD Model

Description

The 856391-5177986-2 is a rectangular connector array designed for board-to-board interconnects in electronic devices.

  • Positions: 60
  • Pitch: 0.031" (0.80mm)
  • Connector Type: Plug connector with center strip contacts
  • Mounting: Surface mount
  • Contact Finish: Gold with a thickness of 8.00µin (0.203µm)
  • Package: Tape & reel
  • Height Above Board: 0.191" (4.85mm)
  • Series: Free Height (FH) by TE Connectivity
  • Mated Stacking Heights: 5mm, 9mm, 13mm, and 17mm
  • Product Status: Active
  • Standard Package: 900 pcs
