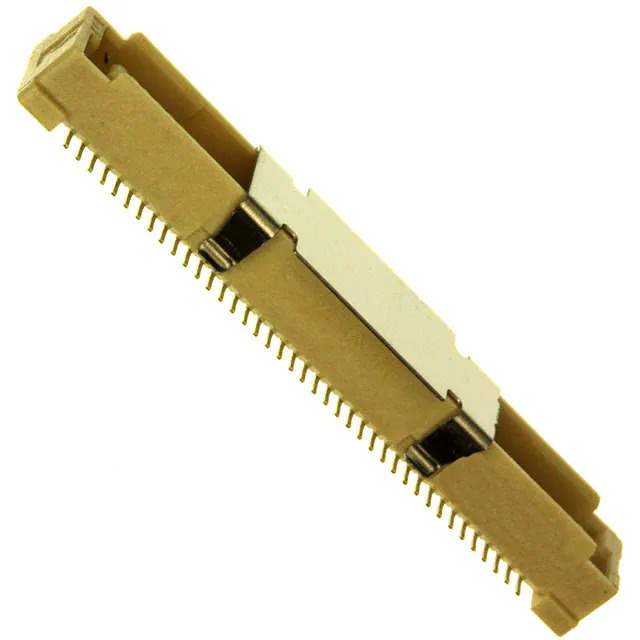

5177984-3 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr TE Connectivity
Series Free Height (FH)
Package Tube
Product Status Active
Connector Type Plug, Center Strip Contacts
Number of Positions 80
Pitch 0.031" (0.80mm)
Number of Rows 2
Mounting Type Surface Mount
Features Board Guide
Contact Finish Gold
Contact Finish Thickness 8.00µin (0.203µm)
Mated Stacking Heights 5mm, 9mm, 13mm, 17mm
Height Above Board 0.181" (4.60mm)
Base Product Number 5177984
Standard Package 12 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 848851-5177984-3
Ultra Librarian 3D Model Ultra Librarian 5177984-3 CAD Model

Description

The TE Connectivity electronic component with the Win Source Part Number 848851-5177984-3 is a high-quality rectangular connector array with edge type and mezzanine (board to board) configuration.

  • Series: Free Height (FH)
  • Positions: 80
  • Pitch: 0.031" (0.80mm)
  • Board Guide: Yes
  • Connector Type: Plug
  • Contact Type: Center Strip
  • Rows: 2
  • Contact Finish: Gold
  • Contact Finish Thickness: 8.00µin (0.203µm)
  • Package: Tube (12 pieces)
  • Mounting Type: Surface Mount
  • Height Above Board: 0.181" (4.60mm)
  • Mated Stacking Heights: 5mm, 9mm, 13mm, 17mm
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8536.69.4040
  • Manufacturer: TE Connectivity
  • Base Product Number: 5177984
  • Status: Active
