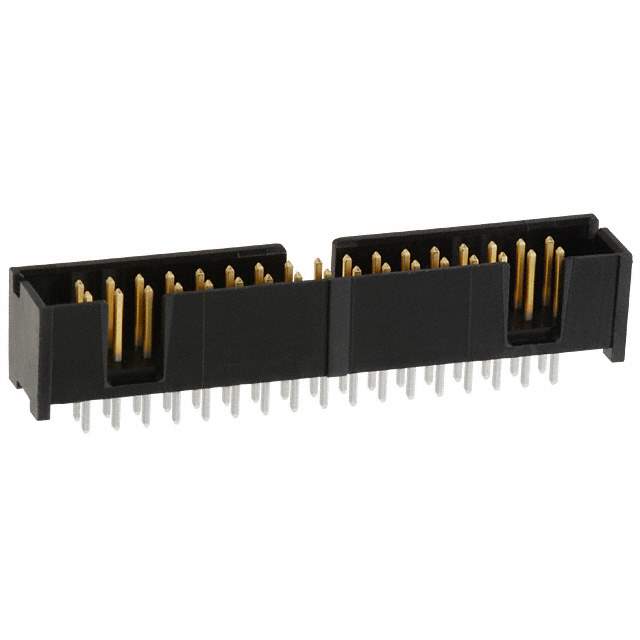

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer TE Connectivity AMP Connectors
Packaging Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 34
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Style Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.240" (6.10mm)
Contact Length - Post 0.120" (3.05mm)
Insulation Height 0.388" (9.86mm)
Contact Shape Square
Contact Finish - Mating Gold or Gold-Palladium
Contact Finish Thickness - Mating 15.0μin (0.38μm)
Contact Finish - Post Tin
Contact Material Brass
Features Keying Slot
Temperature Range - Operating -65°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 1A per Contact
Contact Finish Thickness - Post 100.0μin (2.54μm)
Manufacturer Pack Quantity 50
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 806435-5103308-7
Ultra Librarian 3D Model Ultra Librarian 5103308-7 CAD Model

Description

The TE Connectivity AMP Connectors 806435-5103308-7 Header Connector is a through-hole component with 34 male pin contacts.

  • Keying: Slot
  • Positions Loaded: All
  • Rows: 2
  • Shrouding: 4 Walls
  • Contact Material: Brass
  • Mating Contact Finish: Gold or Gold-Palladium
  • Post Contact Finish: Tin
  • Contact Shape: Square
  • Mating Contact Length: 0.240 inches
  • Post Contact Length: 0.120 inches
  • Pitch: 0.100 inches
  • Row Spacing: 0.100 inches
  • Insulation Height: 0.388 inches
  • Insulation Color: Black
  • Operating Temperature: -65°C to 105°C
  • Material Flammability Rating: UL94 V-0
  • Fastening Type: Push-Pull
  • Package: Tray
  • Manufacturer Pack Quantity: 50
