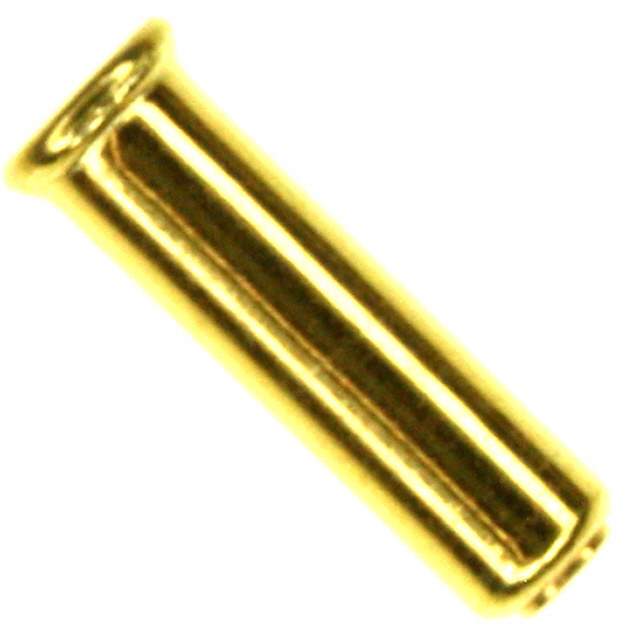

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - PC Pin Receptacles, Socket Connectors
Mfr TE Connectivity AMP Connectors
Series 4
Package Bulk
Tail Type No Tail
Termination Solder
Length - Overall 0.260" (6.60mm)
Accepts Pin Diameter 0.034" ~ 0.041" (0.86mm ~ 1.04mm)
Mounting Hole Diameter 0.072" (1.83mm)
Flange Diameter 0.089" (2.26mm)
Socket Depth 0.247" (6.27mm)
Contact Material Beryllium Copper
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Features Knockout Bottom
Temperature Range - Operating -65°C ~ 125°C
Base Product Number 50865
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names 2266-50865-2,508652,A24881
Standard Package 2,000
Win Source Part Number 965696-50865-2
Ultra Librarian 3D Model Ultra Librarian 50865-2 CAD Model

Description

TE Connectivity AMP Connectors presents the 965696-50865-2, a high-density interconnect connector with a male header and gold contact finish.

  • Pin Diameter: 0.034-0.041 inches
  • Mounting Hole Diameter: 0.072 inches
  • Bottom: knockout
  • Flange Diameter: 0.089 inches
  • Mating Guide: Yes
  • Operating Temperature: -65°C to 125°C
