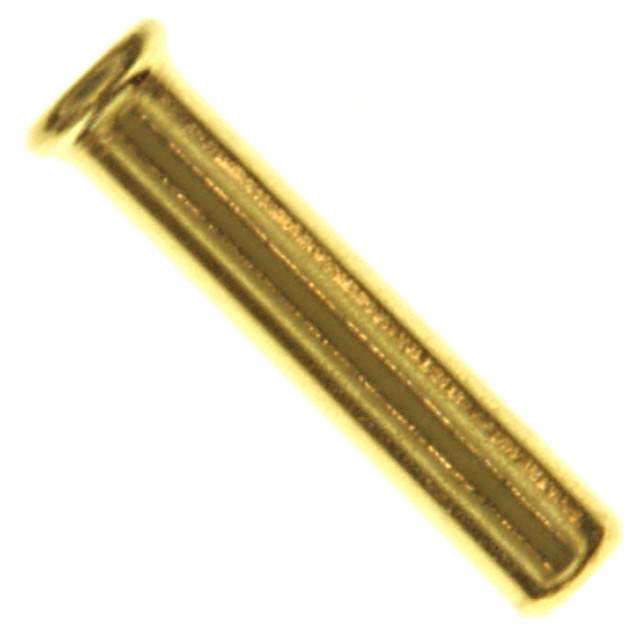

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Status Active
Tail Type No Tail
Termination Solder
Length - Overall 0.260" (6.60mm)
Accepts Pin Diameter 0.014" to 0.026" (0.36mm to 0.66mm)
Mounting Hole Diameter 0.052" (1.32mm)
Flange Diameter 0.070" (1.77mm)
Socket Depth 0.247" (6.27mm)
Contact Finish Gold
Contact Finish Thickness 30μin (0.76μm)
Features Open Bottom
Temperature Range - Operating -65°C to 126°C
Win Source Part Number 1021903-50863
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 50863 CAD Model

Description

The 1021903-50863 is an active connector that falls under the category of connectors and interconnects from TE Connectivity AMP Connectors.

  • Packaging: Bulk
  • Bottom: Open Bottom
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: 30μin (0.76μm)
  • Overall Length: 0.260 inches (6.60mm)
  • Accepts Pin Diameter: 0.014 inches to 0.026 inches (0.36mm to 0.66mm)
  • Mounting Hole Diameter: 0.052 inches (1.32mm)
  • Flange Diameter: 0.070 inches (1.77mm)
  • Socket Depth: 0.247 inches (6.27mm)
  • Supply and Demand Status: Balanced
  • Temperature Range: -65°C to 126°C
