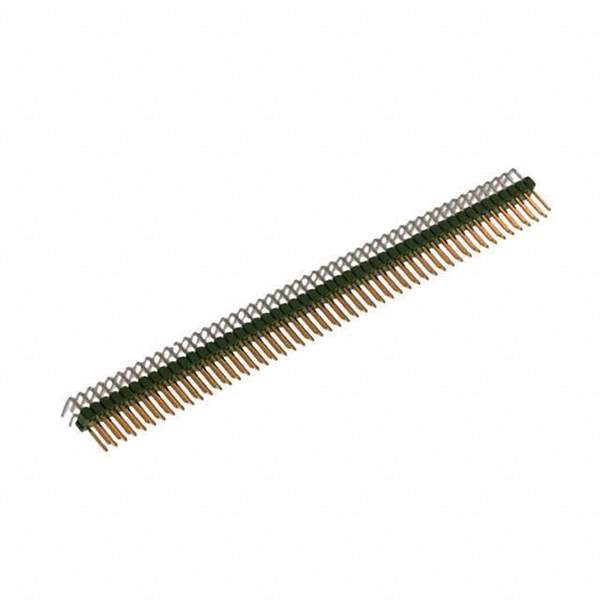

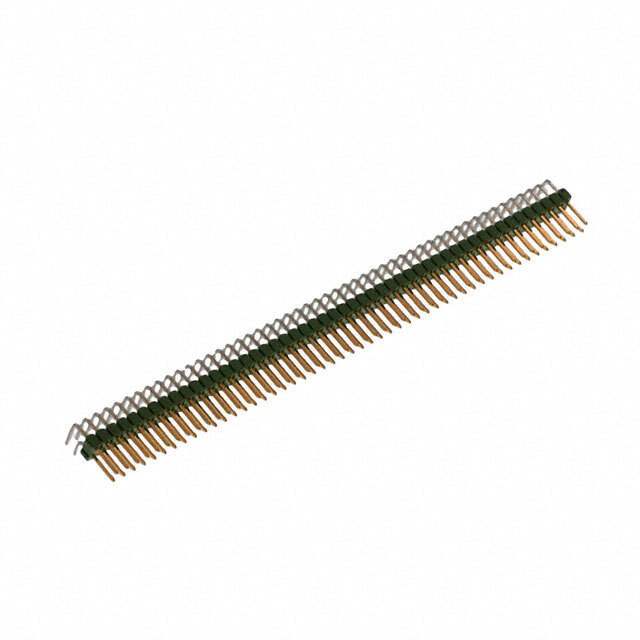

5-826634-0 TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

5-826634-0

Part No 5-826634-0
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER R/A 100P 2.54MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1207497-5-826634-0
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects-Rectangular Connectors-Headers, Male Pins
Series AMPMODU Mod II
Product Status Active
Connector Type Header, Breakaway
Package Bulk
Contact Type Male Pin
Number of Positions 100
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Ultra Librarian 3D Model Ultra Librarian 5-826634-0 CAD Model

Description

Connector Header Through Hole, Right Angle 100 position 0.100" (2.54mm)
