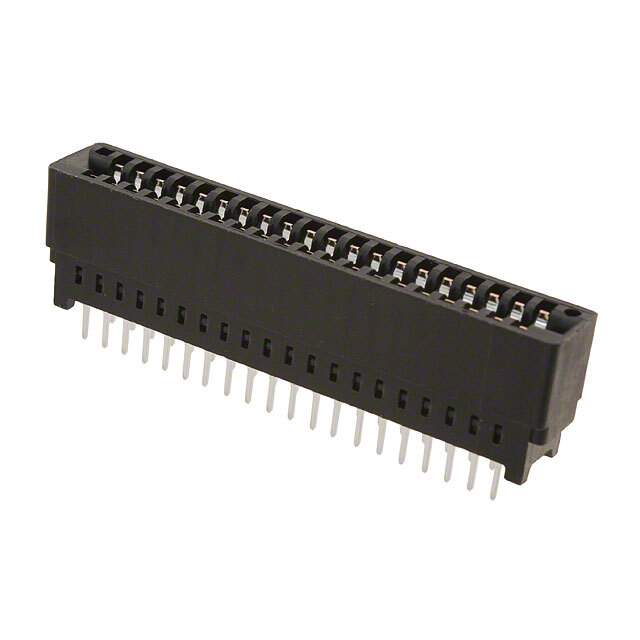

5-530843-4 Real Image
Same model may have multiple batches, images only for reference.

5-530843-4

Part No 5-530843-4
Manufacturer TE Connectivity
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN CARDEDGE FEMALE 40POS 0.100
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Series Standard Edge II
Packaging Bulk
Card Type Multibus I
Gender Female
Number of Positions 40
Card Thickness 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows 2
Pitch 0.100" (2.54mm)
Mounting Style Through Hole
Termination Solder
Contact Material Phosphor Bronze
Contact Finish Gold
Contact Finish Thickness 30μin (0.76μm)
Color Black
Operating Temperature Range -55°C ~ 85°C
Material - Insulation Polyester, Glass Filled
Read Out Dual
Win Source Part Number 764019-5-530843-4
Popularity Medium
Supply and Demand Status Limited
Quantity per package 486
Ultra Librarian 3D Model Ultra Librarian 5-530843-4 CAD Model

Description

{"ProductId":702397,"FormattedDescription":"

The Standard Edge II series connector is manufactured by TE Connectivity AMP Connectors.

  • Mounting: Through-Hole
  • Pitch: 0.100" (2.54mm)
  • Positions: 40
  • Card Type: Multibus I
  • Contact Finish: Gold
  • Contact Material: Phosphor Bronze
  • Temperature Range: -55°C to 85°C
  • Insulation Material: Polyester, Glass-Filled
  • Supply and Demand Status: Limited
  • Packaging: 486
"}
