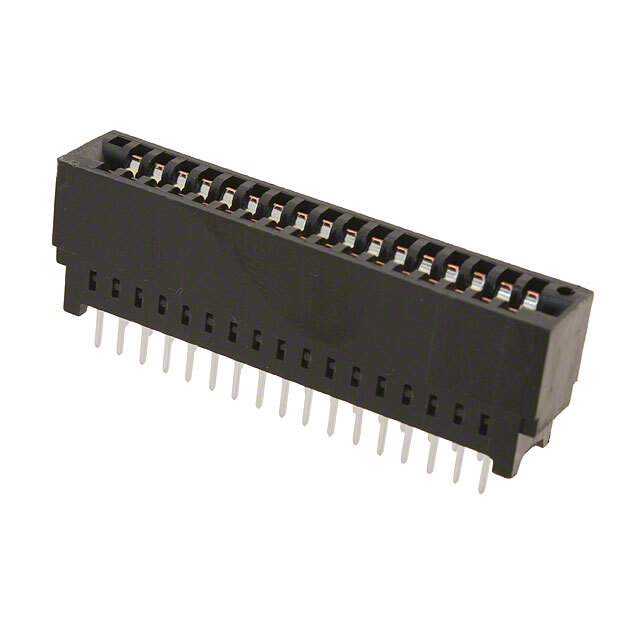

The TE Connectivity AMP Connectors Edgeboard Connector is a female connector with a number of positions of 34 and a pitch of 0.100" (2.54mm).

• Positions: 34
• Pitch: 0.100" (2.54mm)
• Color: Black
• Termination: Solder
• Contact Finish: Gold
• Contact Finish Thickness: 30.0μin (0.76μm)
• Contact Material: Phosphor Bronze
• Insulation Material: Polyester, Glass Filled
• Readout: Dual
• Mounting: Through Hole
• Card Type: Multibus I
• Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
• Shrouding: Shrouded - 2 Wall
• Temperature Range: -55°C ~ 85°C
• REACH Affected: Yes
