Same model may have multiple batches, images only for reference.

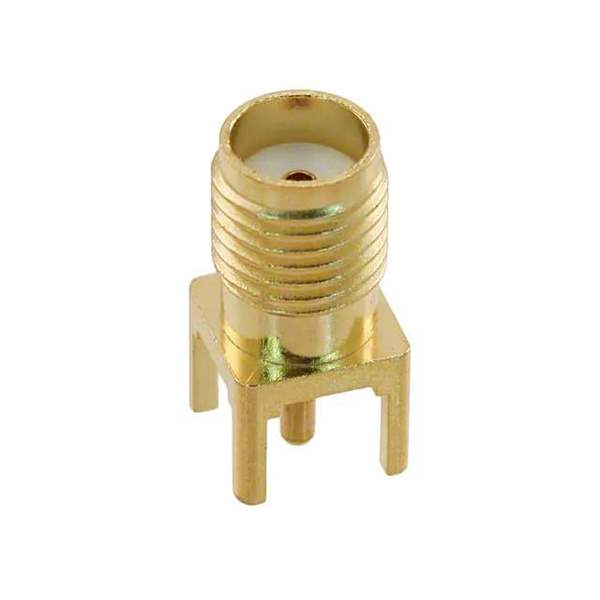

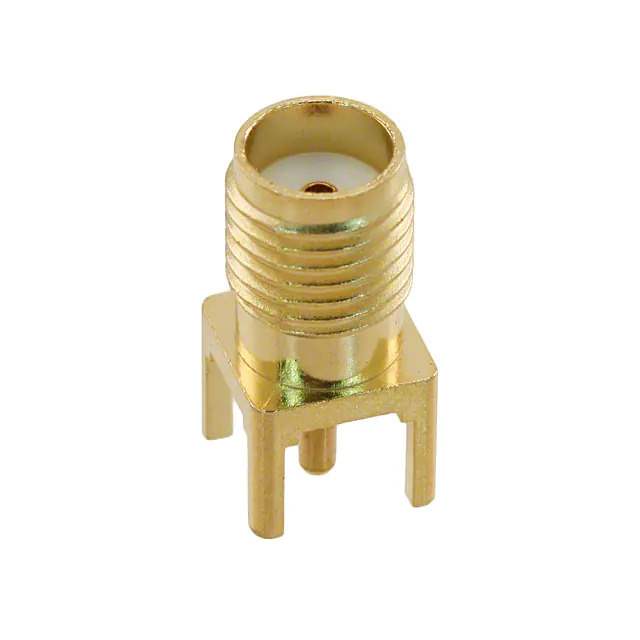

5-1814832-1 Real Image
Same model may have multiple batches, images only for reference.

5-1814832-1

Part No 5-1814832-1
Manufacturer TE Connectivity
Catalog Coaxial Connectors (RF) - Assemblies
Description CONN SMA JACK STR 50 OHM PCB
Datasheet
5-1814832-1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Coaxial Connectors (RF) - Coaxial Connector (RF) Assemblies
Mfr TE Connectivity
Series ZDC, Greenpar
Package Bulk
Product Status Obsolete
Connector Style SMA
Connector Type Jack, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Type Through Hole
Fastening Type Threaded
Frequency - Max 3 GHz
Number of Ports 1
Housing Color Gold
Center Contact Material Phosphor Bronze
Body Material Zinc Alloy
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C ~ 165°C
Voltage Rating 500 V
Mating Cycles 500
Base Product Number 1814832
Standard Package 50 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4010
Win Source Part Number 848449-5-1814832-1
Ultra Librarian 3D Model Ultra Librarian 5-1814832-1 CAD Model

Description

The 848449-5-1814832-1 is a coaxial connector assembly from TE Connectivity's ZDC and Greenpar series.

  • Series: ZDC and Greenpar
  • Connector Type: jack, female socket
  • Fastening: threaded
  • Voltage Rating: 500V
  • Maximum Frequency: 3 GHz
  • Housing Color: gold
  • Housing Material: zinc alloy
  • Impedance: 50 Ohm
  • Packaging: bulk
  • Standard Package: 50 pieces
  • Temperature Range: -65°C to 165°C
  • ECCN: EAR99 compliant
  • REACH: affected
  • HTSUS Code: 8536.69.4010
