Same model may have multiple batches, images only for reference.

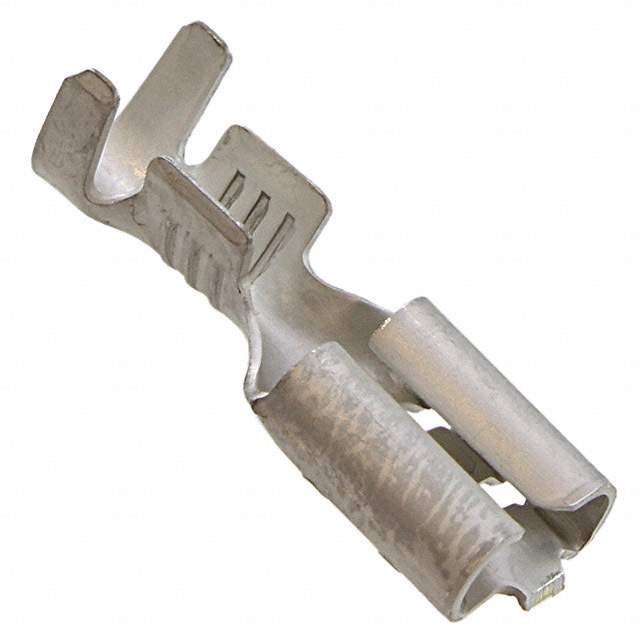

5-160430-7 Real Image
Same model may have multiple batches, images only for reference.

5-160430-7

Part No 5-160430-7
Manufacturer TE Connectivity
Catalog Terminals
Description CONN QC RCPT 15.5-20AWG 0.187 / 0.187" (4.75mm) Quick Connect Female 15.5-20 AWG Crimp Connector Non-Insulated
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Quick Connects, Quick Disconnect Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Terminal Type Standard
Gender Female
Tab Width 0.187" (4.75mm)
Tab Thickness 0.032" (0.81mm)
Tab Length 0.248" (6.30mm)
Length - Overall 0.591" (15.00mm)
Termination Crimp
Wire Gauge 15.5-20 AWG
Insulation Non-Insulated
Mounting Free Hanging (In-Line)
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.091" ~ 0.130" (2.31mm ~ 3.30mm)
Base Product Number 160430
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number 5-160430-7-ND,A107196CT,A107196TR,-5-160430-7-SI,-5-160430-7-CSI,51604307
Standard Package 8,000
Win Source Part Number 1333538-5-160430-7
Ultra Librarian 3D Model Ultra Librarian 5-160430-7 CAD Model

Description

The 160430 female quick disconnect terminal is manufactured by TE Connectivity AMP Connectors.

  • Termination Type: Crimp
  • Tab Width: 0.187" (4.75mm)
  • Tab Thickness: 0.032" (0.81mm)
  • Overall Length: 0.591" (15.00mm)
  • Tab Length: 0.248" (6.30mm)
  • Insulation Diameter: 0.091" ~ 0.130" (2.31mm ~ 3.30mm)
  • Wire Gauge: 15.5-20 AWG
  • Insulation: Non-Insulated
  • Packaging: Reel
  • Standard Package: 8,000
  • Mounting: Free Hanging (In-Line)
  • Contact Material: Brass
  • Contact Finish: Tin
