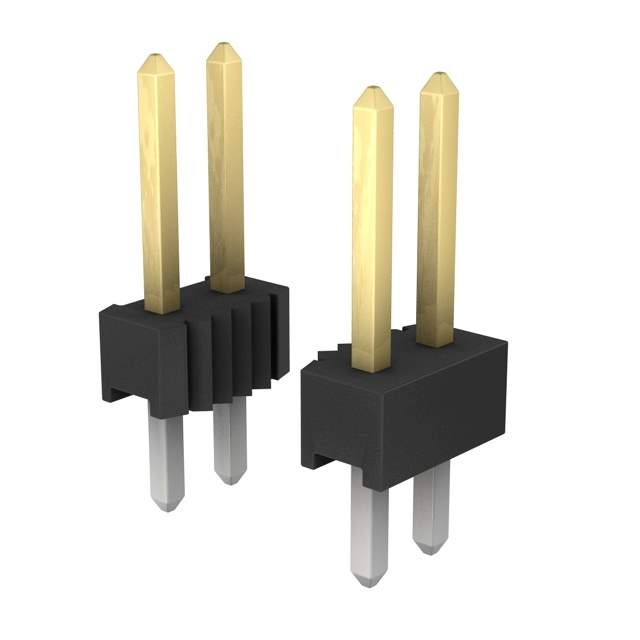

5-146268-5 Real Image
Same model may have multiple batches, images only for reference.

5-146268-5

Part No 5-146268-5
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HDR BRKWAY DUAL 10POS .100
Datasheet
5-146268-5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Series AMPMODU Mod II
Packaging Bulk
Connector Type Header, Breakaway
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Style Board to Board or Cable
Shrouding Unshrouded
Number of Positions 10
Number of Positions Loaded All
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Style Through Hole
Termination Kinked Pin, Solder
Fastening Type Push-Pull
Contact Length - Mating 0.230" (5.84mm)
Contact Length - Post 0.120" (3.05mm)
Overall Contact Length 0.440" (11.18mm)
Insulation Height 0.090" (2.29mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15μin (0.38μm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Liquid Crystal Polymer (LCP)
Operating Temperature Range -65°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating 3A
Contact Finish Thickness - Post 100μin (2.54μm)
Win Source Part Number 763915-5-146268-5
Popularity Medium
Supply and Demand Status Balance
Family Name 146268
Introduction Date February 17, 2006
ECCN EAR99
Country of Origin Mexico
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 5-146268-5 CAD Model

Description

The TE Connectivity AMP Connectors 763915-5-146268-5 is a male pin header connector designed for board-to-board or cable connections. The manufacturer of this product is TE Connectivity AMP Connectors.

  • Positions: 10
  • Rows: 2
  • Mounting: Through-hole
  • Pitch: 0.1 inches
  • Voltage Rating: -
  • Current Rating: 3A
  • Contact Material: Copper alloy
  • Contact Finish - Mating: Gold, 15μin (0.38μm)
  • Contact Finish - Post: Tin, 100μin (2.54μm)
  • Insulation Material: Liquid crystal polymer (LCP)
  • Material Flammability: UL94 V-0
