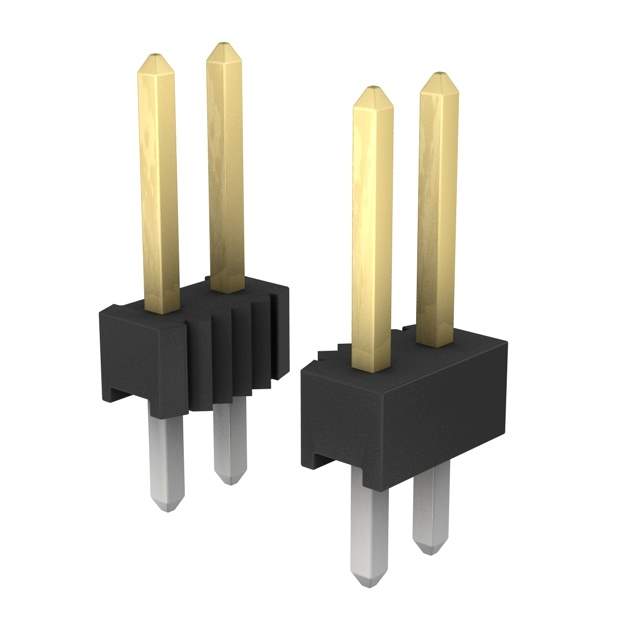

5-146256-5 Real Image
Same model may have multiple batches, images only for reference.

5-146256-5

Part No 5-146256-5
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 10POS 2.54MM / Connector Header Through Hole 10 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Type Header, Breakaway
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 10
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Unshrouded
Mounting Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.230" (5.84mm)
Contact Length - Post 0.120" (3.05mm)
Overall Contact Length 0.440" (11.18mm)
Insulation Height 0.090" (2.29mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15.0µin (0.38µm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Liquid Crystal Polymer (LCP)
Temperature Range - Operating -65°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Contact Finish Thickness - Post 100.0µin (2.54µm)
Base Product Number 146256
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number A121370,2266-5-146256-5,5-146256-5-ND
Standard Package 320
Win Source Part Number 1332587-5-146256-5
Ultra Librarian 3D Model Ultra Librarian 5-146256-5 CAD Model

Description

This is a 10-position header connector with a breakaway feature.

  • Contact Type: male pins
  • Mounting Type: through-hole
  • Contact Material: copper alloy
  • Contact Finish: gold
  • Voltage Rating: -
  • Suitable for: board-to-board or cable connections
  • Contact Length - Mating: 0.230 inches
  • Contact Length - Post: 0.120 inches
  • Insulation Material: liquid crystal polymer (LCP)
  • Insulation Height: 0.090 inches
  • Temperature Range: -65°C to 105°C
  • Current Rating: 3A
  • RoHS3 Compliant: Yes
  • Standard Package: 320
  • Contact Finish Thickness - Mating: 15.0µin (0.38µm)
  • Contact Finish Thickness - Post: 100.0µin (2.54µm)
