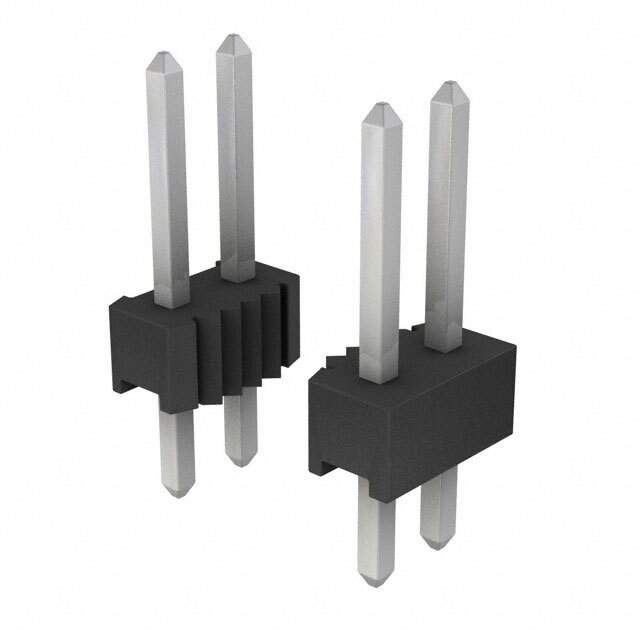

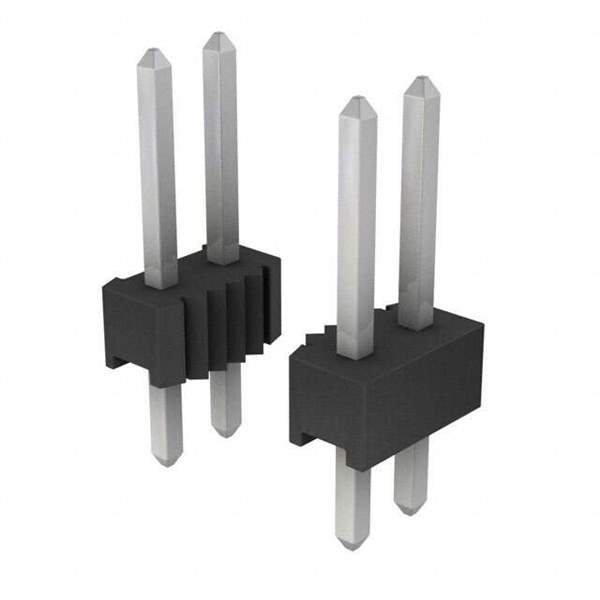

5-146250-3 Real Image
Same model may have multiple batches, images only for reference.

5-146250-3

Part No 5-146250-3
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HDR BRKWAY .100 6POS VERT
Datasheet
5-146250-3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Status Active
Connector Type Header, Breakaway
Contact Type Male Pin
Pitch - Mating 2.54mm
Style Board to Board or Cable
Shrouding Unshrouded
Number of Positions 6
Number of Positions Loaded All
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.318" (8.08mm)
Contact Length - Post 0.125" (3.18mm)
Overall Contact Length 0.533" (13.55mm)
Insulation Height 0.090" (2.29mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 100μin (2.54μm)
Contact Finish - Post Tin
Insulation Material Liquid Crystal Polymer (LCP)
Temperature Range - Operating -65°C to 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating 3A
Contact Finish Thickness - Post 100μin (2.54μm)
Win Source Part Number 1005987-5-146250-3
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian 5-146250-3 CAD Model

Description

The 1005987-5-146250-3 is a header connector with breakaway feature manufactured by TE Connectivity AMP Connectors.

  • Positions Loaded: 6
  • Contact Type: Male Pin
  • Rows: 2
  • Termination: Soldering
  • Fastening Type: Push-Pull
  • Current Rating: 3A
  • Material Flammability Rating: UL94 V-0
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Style: Board to Board or Cable
  • Pitch: 2.54mm
  • Mating Contact Finish: Tin, with a thickness of 100μin (2.54μm)
  • Post Contact Finish: Tin with the same thickness
  • Insulation Color: Black
  • Shrouded: Unshrouded
  • Row Spacing: 0.100 inches (2.54mm)
  • Contact Length for Post: 0.125 inches (3.18mm)
  • Overall Contact Length: 0.533 inches (13.55mm)
  • Insulation Height: 0.090 inches (2.29mm)
  • Contact Shape: Square
  • Temperature Range: -65°C to 105°C
