Same model may have multiple batches, images only for reference.

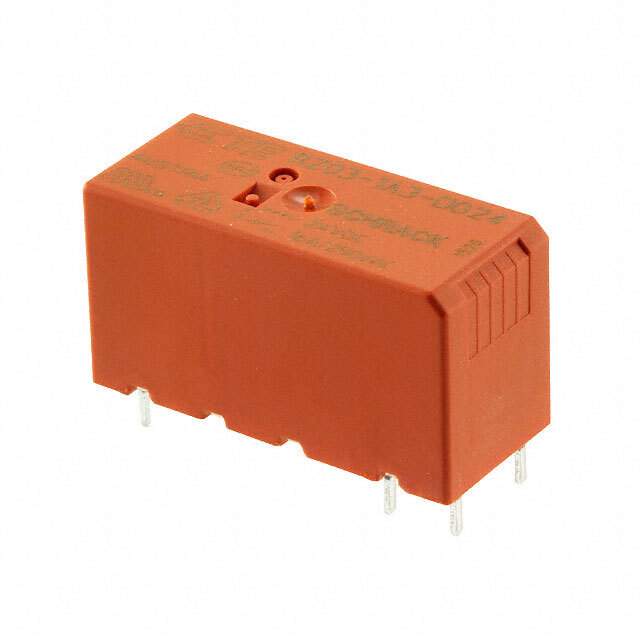

5-1415899-0 Real Image
Same model may have multiple batches, images only for reference.

5-1415899-0

Part No 5-1415899-0
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 16A 24V / General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Tube
Mounting Through Hole
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 16 A
Switching Voltage 400VAC - Max
Coil Current 16.7 mA
Coil Type Non Latching
Termination Style PC Pin
Coil Insulation Class F
Must Operate Voltage 16.8 VDC
Must Release Voltage 2.4 VDC
Operate Time 8 ms
Release Time 6 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 1.44 kOhms
Base Product Number 5-1415899
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.49.0050
Other Part Number 2266-5-1415899-0,5-1415899-0-ND,RZ03-1A3-D024,PB2011
Standard Package 20
Win Source Part Number 1323865-5-1415899-0
Ultra Librarian 3D Model Ultra Librarian 5-1415899-0 CAD Model

Description

The 5-1415899-0 is a power relay manufactured by TE Connectivity Potter & Brumfield Relays.

  • Contact Form: SPST-NO (1 Form A)
  • Contact Rating: 16A
  • Switching Voltage: 400VAC max
  • Coil Voltage: 24VDC
  • Coil Current: 16.7mA
  • Temperature Range: -40°C to 85°C
  • ROHS3 Compliant: true
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • Package Type: tube
  • Standard Package: 20
  • Must Operate Voltage: 16.8VDC
  • Must Release Voltage: 2.4VDC
