Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer TE Connectivity AMP Connectors
Packaging Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 6
Number of Rows 1
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Through Hole
Termination Press-Fit, Solder
Fastening Type Latch Holder
Contact Length - Mating 0.230" (5.84mm)
Contact Length - Post 0.130" (3.30mm)
Overall Contact Length 0.545" (13.84mm)
Insulation Height 0.535" (13.60mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15.0µin (0.38µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Thermoplastic
Features Board Guide, Keying Slot
Temperature Range - Operating -65°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Contact Finish Thickness - Post 100.0µin (2.54µm)
Applications Automotive, General Purpose, Medical, Telecommunications
Base Product Number 104809
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number -5-104809-5-CSI,-5-104809-5-SI,2266-5-104809-5
Standard Package 2,160
Win Source Part Number 1332680-5-104809-5
Ultra Librarian 3D Model Ultra Librarian 5-104809-5 CAD Model

Description

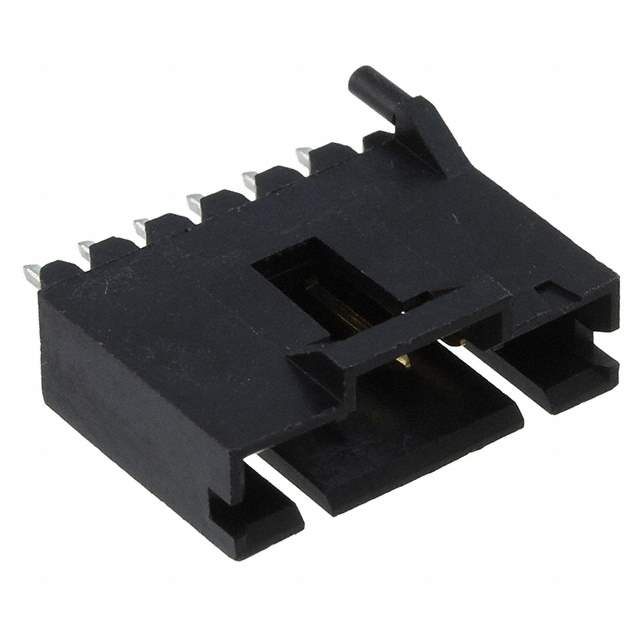

TE Connectivity AMP Connectors 1332680-5-104809-5 is a male pin header connector with 6 positions and a pitch of 0.100" (2.54mm).

  • Positions: 6
  • Pitch - Mating: 0.100" (2.54mm)
  • Color: Black
  • Mounting Type: Through Hole
  • Fastening Type: Latch Holder
  • Shrouding: Shrouded, 4 Walls
  • Contact Finish - Mating: Gold
  • Contact Finish Thickness - Mating: 15.0µin (0.38µm)
  • Contact Finish - Post: Tin
  • Contact Finish Thickness - Post: 100.0µin (2.54µm)
  • Temperature Range: -65°C to 105°C
  • RoHS3 Compliant: Yes
  • Series: 104809
  • Packaging: Tube
  • Standard Package: 2,160
