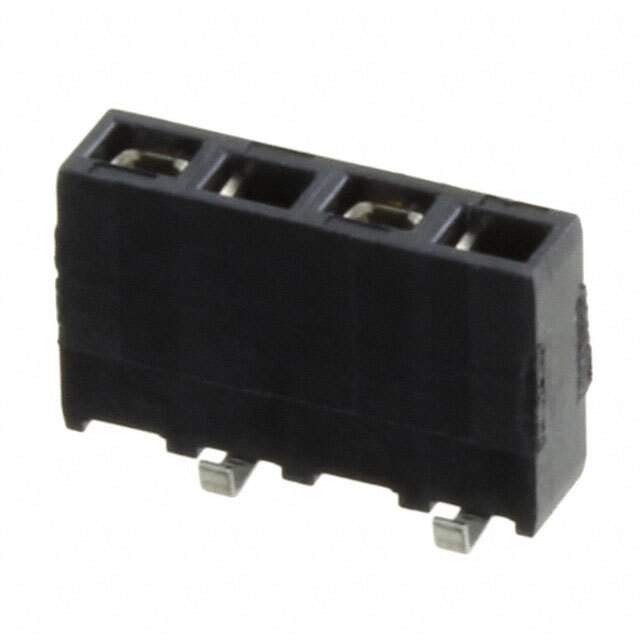

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr TE Connectivity AMP Connectors
Series AMPMODU HV-100
Package Tape & Reel
Connector Type Receptacle, Bottom or Top Entry
Contact Type Female Socket
Style Board to Board
Number of Positions 4
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 1
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 31.5µin (0.80µm)
Insulation Color Black
Insulation Height 0.244" (6.20mm)
Contact Finish - Post Tin
Features Pick and Place
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Copper Alloy
Contact Finish Thickness - Post 100.0µin (2.54µm)
Base Product Number 1241152
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names A121787DKR,1241152-4-ND,A121787TR,A121787-ND,A121787CT,-1241152-4-SI,A121787,-1241152-4-LSI
Standard Package 700
Win Source Part Number 997117-1241152-4
Ultra Librarian 3D Model Ultra Librarian 1241152-4 CAD Model

Description

The AMPMODU HV-100 series is a range of connectors designed for use in applications that require high voltage connections.

  • Connector Type: Receptacle
  • Entry: Bottom or Top
  • Fastening Type: Push-Pull
  • Contact Type: Female Socket
  • Termination: Solder
  • Pitch: 0.100" (2.54mm)
  • Packaging: Tape & Reel
  • Contact Finish: Gold
  • Contact Finish Thickness (Mating): 31.5µin (0.80µm)
  • Post Contact Finish: Tin
  • Post Contact Finish Thickness: 100.0µin (2.54µm)
  • Contact Material: Copper Alloy
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Insulation Height: 0.244" (6.20mm)
  • Standard Package: 700
  • Applications: Board to Board
