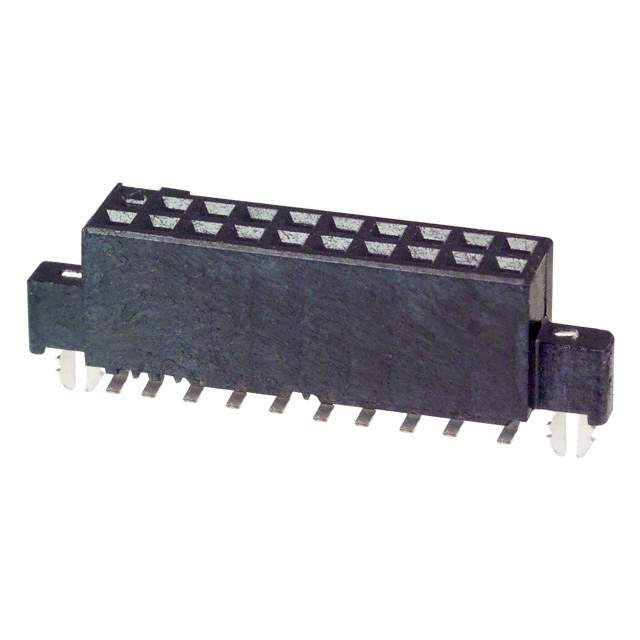

5-104652-2 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Receptacles, Female Sockets
Manufacturer TE Connectivity AMP Connectors
Packaging Tube
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board or Cable
Number of Positions 20
Number of Positions Loaded All
Pitch - Mating 0.050" (1.27mm)
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Mounting Surface Mount
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Insulation Color Black
Insulation Height 0.187" (4.75mm)
Temperature Range - Operating -65°C ~ 105°C
Contact Finish - Post Tin
Mated Stacking Heights 6.35mm, 8.13mm, 9.91mm
Features Board Lock
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Copper Alloy
Contact Finish Thickness - Post 150.0µin (3.81µm)
Base Product Number 104652
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 51046522,2266-5-104652-2,-5-104652-2-CSI,A33547,-5-104652-2-SI
Standard Package 31
Win Source Part Number 1332076-5-104652-2
Ultra Librarian 3D Model Ultra Librarian 5-104652-2 CAD Model

Description

This is a 20-position rectangular connector receptacle manufactured by TE Connectivity AMP Connectors.

  • Positions: 20
  • Connector Type: Receptacle
  • Contact Type: Female Socket
  • Features: Board Lock
  • Mounting: Surface Mount
  • Positions Loaded: All
  • Rows: Two
  • Termination: Solder
  • Fastening Type: Push-Pull
  • Contact Material: Copper Alloy
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Pitch Mating: 0.050 inches (1.27mm)
  • Contact Finish Mating: Gold with a thickness of 30.0μin (0.76μm)
  • Contact Finish Post: Tin with a thickness of 150.0μin (3.81μm)
  • Insulation Color: Black
  • Contact Shape: Square
  • Operating Temperature: -65°C to 105°C
