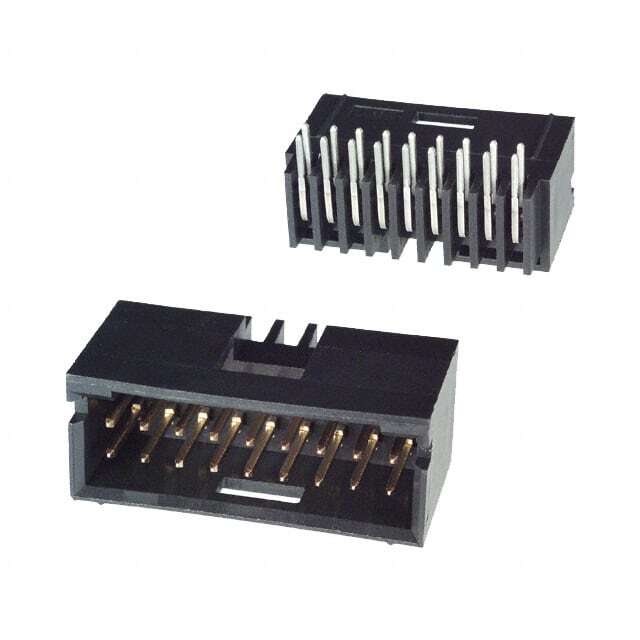

5-103166-7
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity
Series AMPMODU Mod II
Package Tray
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 18
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.318" (8.08mm)
Contact Length - Post 0.135" (3.43mm)
Insulation Height 0.400" (10.16mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Thermoplastic
Temperature Range - Operating -65°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Contact Finish Thickness - Post 100.0µin (2.54µm)
Base Product Number 103166
Standard Package 192 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 856348-5-103166-7
Ultra Librarian 3D Model Ultra Librarian 5-103166-7 CAD Model

Description

The 856348-5-103166-7 is a male pin header connector from the AMPMODU Mod II series by TE Connectivity.

  • Positions: 18
  • Positions Loaded: All
  • Rows: 2
  • Fastening Type: detent lock
  • Termination: solder
  • Contact Material: phosphor bronze
  • Pitch: 0.100" (2.54mm)
  • Contact Finish: gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Post Finish: tin
  • Post Finish Thickness: 100.0µin (2.54µm)
  • Shroud: 4 walls
  • Mounting Type: through hole, right angle
  • Operating Temperature: -65°C to 105°C
  • Current Rating: 3A
  • Standard Package: 192 pcs
  • Application: board-to-board or cable connections
  • Status: active
