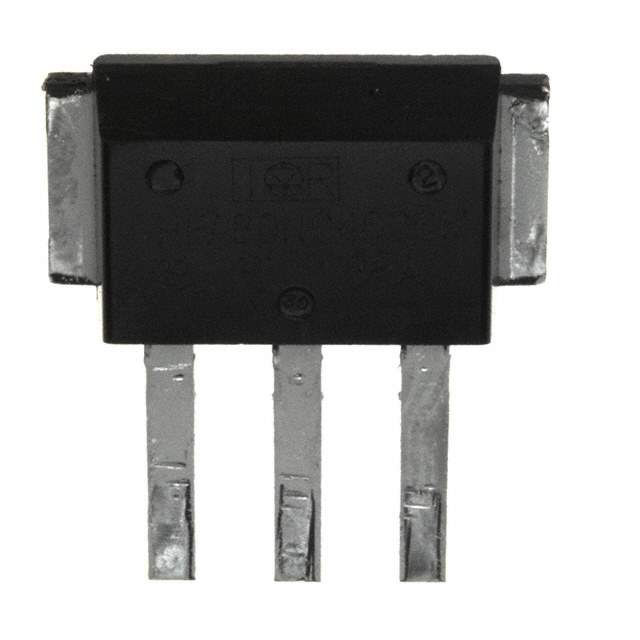

89CNQ150ASM Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Status Obsolete
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 150V
Current - Average Rectified (Io) (per Diode) 40A
Voltage - Forward (Vf) (Maximum) at If 990mV at 40A
Speed Fast Recovery = 200mA (Io)
Current - Reverse Leakage at Vr 1.5mA at 150V
Operating Temperature - Junction -55°C ~ 175°C
Mounting Style Through Hole
Manufacturer Package D-61-8-SM
Supplier Device Package D-61-8-SM
Family Part Number 89CNQ150A
Manufacturer Pack Quantity 20
MSL Level 1 (Unlimited)
Win Source Part Number 1134101-89CNQ150ASM
Manufacturer Homepage www.irf.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 89CNQ150ASM CAD Model

Description

The Vishay Semiconductor Diodes Division 89CNQ150ASM is a Schottky diode component that is commonly used in electronic circuits.

  • Supply and Demand Status: Limited
  • Current: 40A
  • Maximum Reverse Voltage: 150V
  • Operating Temperature: -55°C to 175°C
